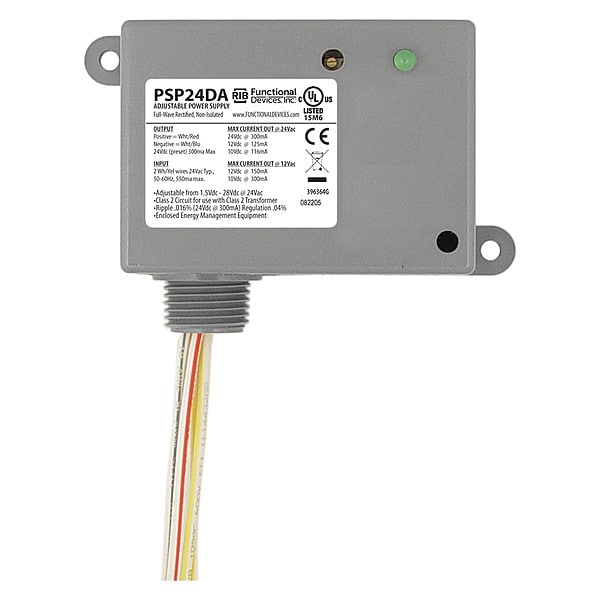

Enclosed Linear DC Power Supply, 24V AC, 1.5 to 28V DC, 116 mA, 125 mA, 300 mA
| Item | Enclosed Linear DC Power Supply |
|---|---|
| Input Voltage | 24V AC |
| Output Voltage | 1.5 to 28V DC |
| Output Amps | 116 mA, 125 mA, 300 mA |
| Height | 2.39 in |
| Width | 3.2 in |
| Depth | 1.81 in |
| Hz | 50/60 Hz |
| Standards | CE, RoHS, UL |
| Operating Temp. Range | -30 to 140 deg F |
| Manufacturers Warranty Length | 5 yr |
| Overload Protection | Electrical and Thermal, Auto-Reset |
| Approvals | Class 2 (UL Approved UL5085-3), UL916, C-UL, CE |
| Humidity Range | 5 to 95% (noncondensing) |
| Output Current Ratings | 116 mA @ 10 Vdc 125 mA @ 12 Vdc 300 mA @ 24 Vdc |
| Percent Ripple | 0.0016%, 24 Vdc @ 300 mA |
| Wires | 16", 600V Rated |
| ON/OFF Switch | None |
| Regulation | Load: 0.04% No Load to Full Load Line: 0.0125 V/V |
| Power Status | LED On - Activated |
| Housing Rating | UL Accepted for Use in Plenum, NEMA 1 |
| Frequency | 50/60 Hz |
| Package Quantity | 1 |
