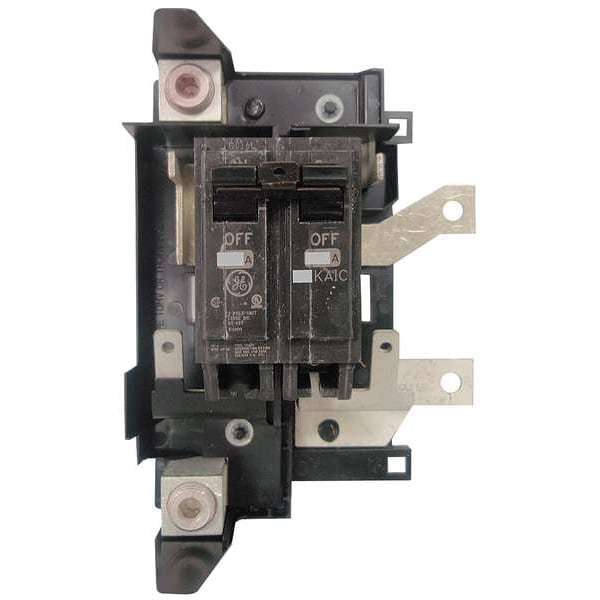

Miniature Circuit Breaker, THQMV Series, 100A, 2 Pole, 120/240V AC, 22kA at 240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | THQMV |
| Amps | 100A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 22kA at 240V AC |
| Terminal Connection | Lug |
| Frame Size | 100A, THQ |
| Width | 8-3/4 in |
| Depth | 6-3/4 in |
| Height | 4-1/2 in |
| DC Voltage Rating | Not Rated |
| Standards | UL Listed |
| For Use With | GE Panelboards |
| Length (Straight Wireway) | 4-1/2 in |
| Mounting | Bolt on |
| Length | 4-1/2 in |
| Package Quantity | 1 |
