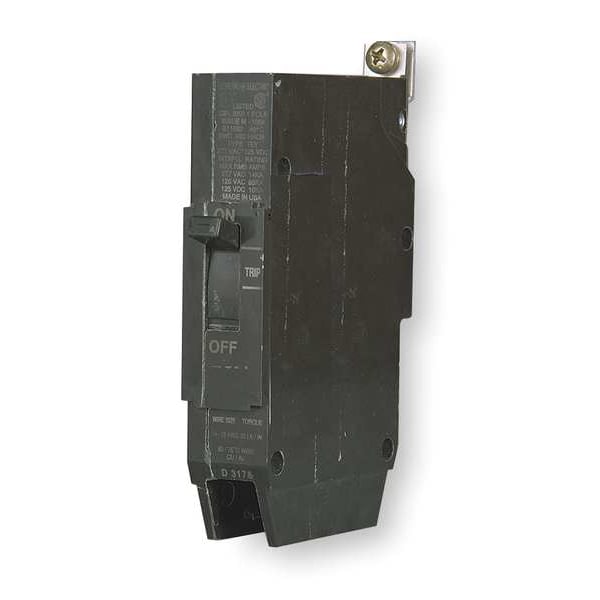

Molded Case Circuit Breaker, TEY Series, 20A, 1 Pole, 277/480V AC, 14kA at 277V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | TEY |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 277/480V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 14kA at 277V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Lug |
| Phase Connection | Any |
| Frame Size | 125A, TEY |
| Width | 1 in |
| Depth | 3-1/16 in |
| Height | 5-1/4 in |
| DC Voltage Rating | 125V DC |
| Max. Wire Size | 10 AWG |
| For Use With | GE AE Lighting Panels |
| Standards | CSA, UL |
| Min. Wire Size | 14 AWG |
| High Amp Trip Setting | 575 A |
| Mounting | Bolt on |
| Length | 5-1/4 in |
| Package Quantity | 1 |
