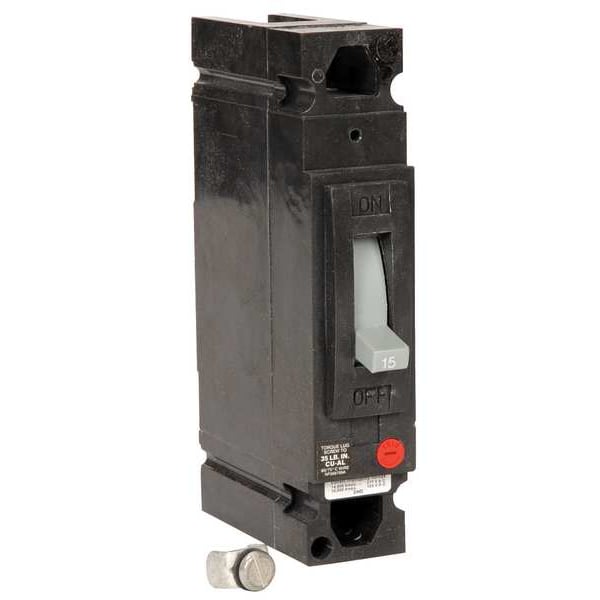

Molded Case Circuit Breaker, THED Series, 15A, 1 Pole, 277V AC, 65kA at 277V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | THED |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 277V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 65kA at 277V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Line, Load Lug |
| Phase Connection | Any |
| Frame Size | 150A, THED |
| Width | 1-3/8 in |
| Depth | 3-3/8 in |
| Height | 6-5/16 in |
| DC Voltage Rating | 125V DC |
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 14 AWG |
| For Use With | GE Panelboards |
| Standards | UL Listed |
| Mounting | Plug In Panelboard |
| Package Quantity | 1 |
