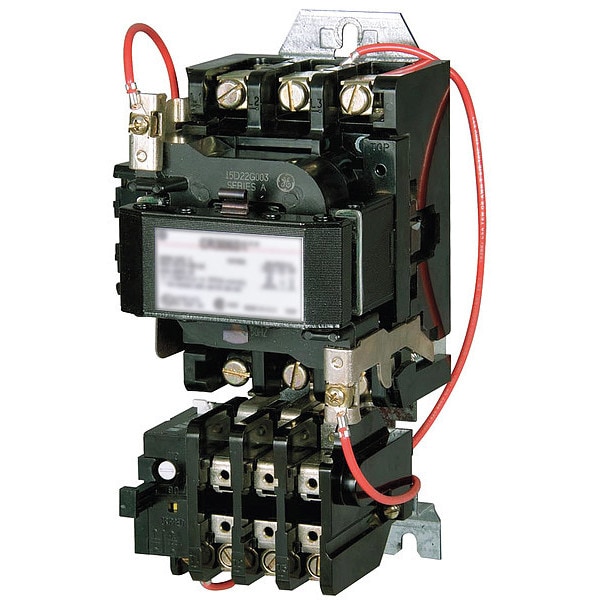

Arrancador magnético no reversible, Clasificación NEMA 1, 480V CA, 3 polos.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 480V AC |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 240V | 100 HP |
| Starter Type | No Enclosure |
| Action | Nonreversing |
| Amps AC | 270 A |
| NEMA Size | 5 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 200 HP |
| HP @ 3 Phase - 208V | 75 HP |
| Hz | 50/60 |
| Width | 17 in |
| Height | 45.12 in |
| Depth | 11 in |
| HP @ 3 Phase - 575V | 200 hp |
| Includes | Holding Interlock |
| Standards | CSA, UL Listed |
| Coil Voltage | 480V AC |
| Mounting Style | DIN Rail |
| Overall Depth | 9 in |
| Maximum Voltage Rating | 480 V AC |
| Overall Width | 11-1/2 in |
| Frequency | 50/60 Hz |
| Resistance Properties | Weld Resistant |
| Horsepower @ Three Phase - 240V AC | 100 HP |
| Overload Protection Type | Thermal |
| Mounting Hole Diameter | 0.38 in |
| Minimum Operating Temperature | -4 deg F |
| NEMA Enclosure Rating | 1 |
| Starter Style | NEMA |
| Mounting Hole Distance - Height | 14-1/4 in |
| Current AC | 270 A |
| Series | CR306 |
| Overall Height | 14-1/4 in |
| Maximum Operating Temperature | 158 deg F |
| Horsepower @ Three Phase - 600V AC | 200 HP |
| Horsepower @ Three Phase - 480V AC | 200 HP |
| Reversing Capability | Non-Reversing |
| Horsepower @ Three Phase - 208V AC | 75 HP |
| Phase | Three |
| Package Quantity | 1 |
