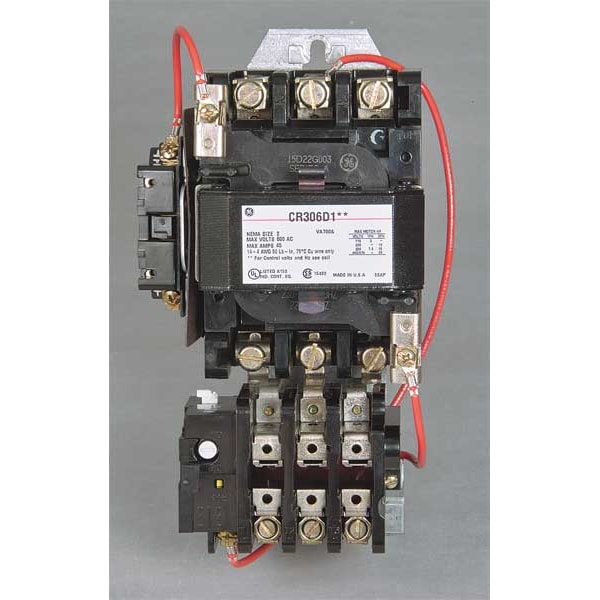

Arrancador magnético no inversor, sin caja de conexiones, calificación NEMA, 120V AC, 3 polos.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 240V | 15 HP |
| Starter Type | No Enclosure |
| Action | Nonreversing |
| Amps AC | 45 A |
| NEMA Size | 2 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 25 HP |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 3 Phase - 208V | 10 HP |
| Hz | 50/60 |
| Includes | Holding Interlock |
| HP @ 1 Phase - 230V | 7 1/2 hp |
| Depth | 5-1/2 in |
| Width | 5.44 in |
| Height | 9.12 in |
| HP @ 3 Phase - 575V | 25 hp |
| Standards | UL 508 |
| Resistance Properties | Weld Resistant |
| Mounting Hole Distance - Height | 8-1/2 in |
| Starter Style | NEMA |
| Minimum Operating Temperature | -4 deg F |
| Maximum Operating Temperature | 158 deg F |
| Series | CR306 |
| Mounting Style | DIN Rail |
| Reversing Capability | Non-Reversing |
| Phase | Three |
| Mounting Hole Distance - Width | 2 in |
| Overall Width | 5.44 in |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Coil Voltage | 120V AC |
| Current AC | 45 A |
| Overall Height | 9.12 in |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Overload Protection Type | Thermal |
| Horsepower @ Three Phase - 480V AC | 25 HP |
| Maximum Voltage Rating | 120 V AC |
| Overall Depth | 5-1/2 in |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Mounting Hole Diameter | 1/4 in |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Package Quantity | 1 |
