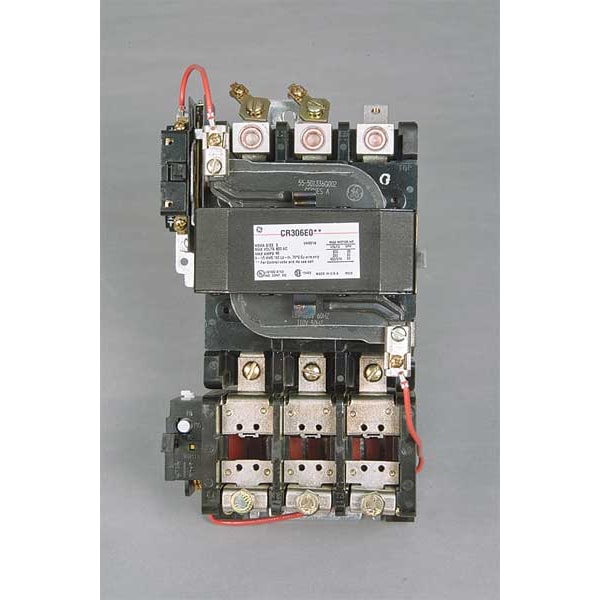

Arrancador de motor magnético no reversible, sin cerramiento, clasificación NEMA, 120V CA, 3 polos.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 240V | 50 HP |
| Starter Type | No Enclosure |
| Action | Nonreversing |
| Amps AC | 135 A |
| NEMA Size | 4 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 100 HP |
| Includes | Holding Interlock |
| Depth | 6-1/2 in |
| HP @ 3 Phase - 575V | 100 hp |
| Height | 11.62 in |
| Hz | 50/60 |
| HP @ 3 Phase - 208V | 40 HP |
| Width | 6.62 in |
| Standards | UL 508 |
| NEMA Enclosure Rating | No Enclosure |
| Reversing Capability | Non-Reversing |
| Horsepower @ Three Phase - 600V AC | 100 HP |
| Phase | Three |
| Mounting Hole Distance - Height | 10.62 in |
| Overall Width | 6.62 in |
| Mounting Hole Diameter | 1/4 in |
| Current AC | 135 A |
| Overall Depth | 6-1/2 in |
| Resistance Properties | Weld Resistant |
| Horsepower @ Three Phase - 208V AC | 40 HP |
| Maximum Operating Temperature | 158 deg F |
| Minimum Operating Temperature | -4 deg F |
| Mounting Style | DIN Rail |
| Overload Protection Type | Thermal |
| Mounting Hole Distance - Width | 2-3/4 in |
| Overall Height | 11.62 in |
| Coil Voltage | 120V AC |
| Maximum Voltage Rating | 120 V AC |
| Series | CR306 |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 480V AC | 100 HP |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 240V AC | 50 HP |
| Package Quantity | 1 |
