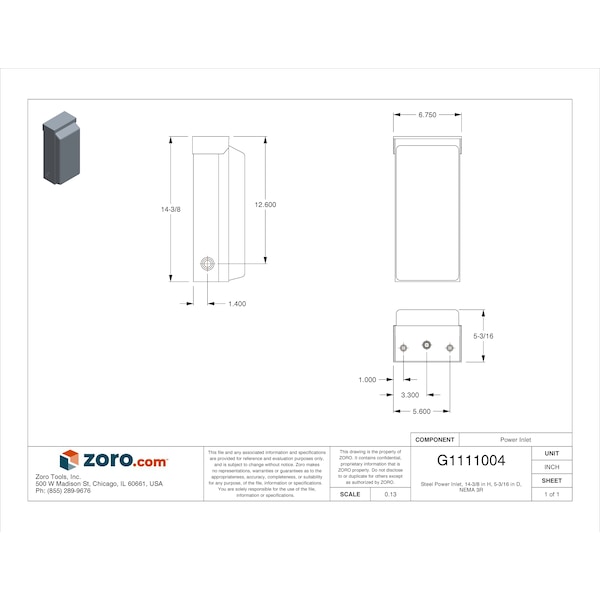

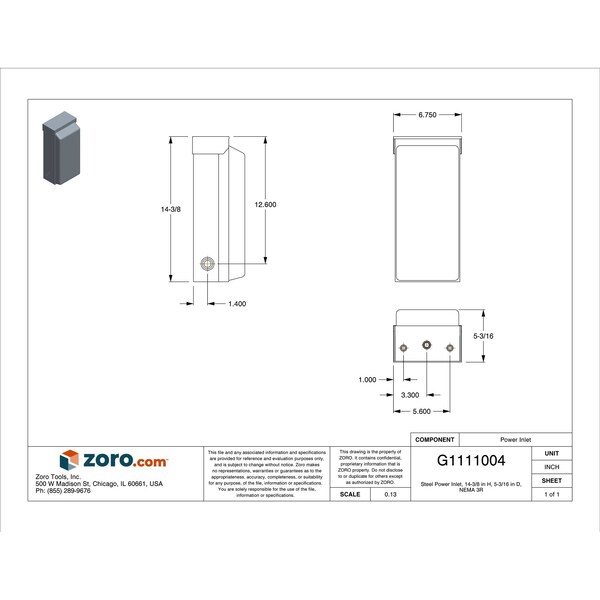

La entrada de energía de acero GE es la solución perfecta para garantizar un suministro eléctrico seguro y confiable. Con una altura de 14-3/8 pulgadas y una profundidad de 5-3/16 pulgadas, cumple con los estándares NEMA 3R para protección en exteriores. Ideal para aplicaciones comerciales e industriales.
| CAD Available | Yes |
|---|---|
| Item | Power Inlet |
| Current Rating | 30 A |
| Enclosure Rating | NEMA 3R |
| Receptacle Type | L14-30 |
| Voltage | 120/240V AC |
| Material of Construction | Steel |
| Amps | 30 |
| Depth | 5-3/16 in |
| Width | 6-3/4 in |
| Standards | cUL Listed, UL Listed |
| Height | 14-3/8 in |
| Voltage Rating | 120/240V AC |
| NEMA Receptacle Configuration | L14-30P |
| Device Type | Power Inlet |
| Overall Width | 6-3/4 in |
| Housing Material | Steel |
| NEMA Enclosure Rating | 3R |
| Overall Height | 14-3/8 in |
| Overall Depth | 5-3/16 in |
| Material of Enclosure | Steel |
| Enclosure NEMA Rating | NEMA 3R |
| Item - Electrical Enclosure | Power Inlet |
| Package Quantity | 1 |
