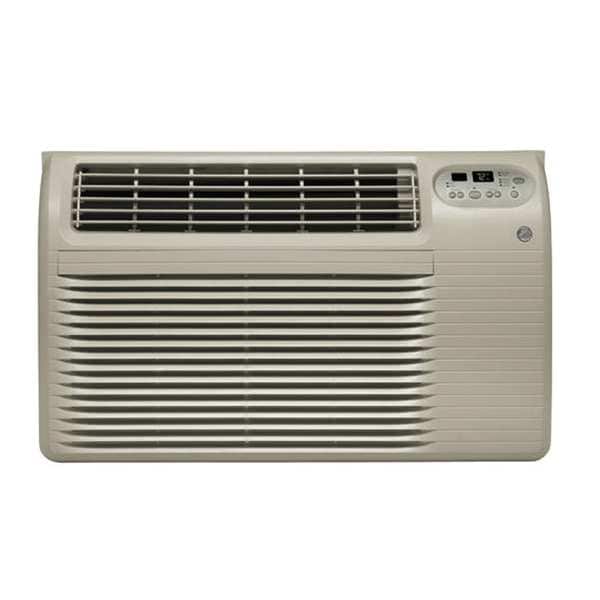

Through-the-Wall Air Conditioner, 208/230V AC, Cool/Heat, 12,000 BtuH, 26 in W.
| Item | Through-the-Wall Air Conditioner |
|---|---|
| Voltage | 208/230V AC |
| Operation Mode | Cool, Heat |
| BtuH Cooling | 12,000 |
| Width | 26 in |
| Height | 15-5/8 in |
| Includes | Wall Sleeve |
| Watts | 1235/1215 W, 3680/3020 W |
| Depth | 16-7/8 in |
| Color | Gray |
| Heating Method | Electric Heat |
| Max. Wall Thickness | 16 in |
| Features | Smart Fan Switch, Timer Remote Control, Batteries Included, Energy Saver, Improved Corrosion Package, Power Interruption Restart |
| Sleeve | RAB46, RAB47, RAB48 |
| Standards | ADA Compliant, AHAM, CuL, Energy Efficiency Verification (Canada), UL Listed |
| Chassis Type | Slide Out |
| Dehumidification Rate | 3.4 lb/hr |
| Air Flow Direction | Four-Way |
| Control Type | Electronic |
| Refrigerant Type | R-410a |
| For Use With | Modular Wall Panels |
| Fan Speeds Heating | 2 |
| Fan Speeds Cooling | 2 |
| Amps | 16/14.5 A, 5.8/6.3 A |
| NEMA Plug Configuration | 6-20P |
| High CFM | 286/304 |
| Item - Air Conditioners and Heat Pumps | Wall Air Conditioner with Heat |
| NEMA Plug Configuration - Air Conditioners and Heat Pumps | 6-20P |
| Fan-Only Speeds | 2 |
| Voltage - Air Conditioners and Heat Pumps | 208/230VAC |
| BtuH Heating | 11,200 |
| Heating Method - Air Conditioners and Heat Pumps | Electric |
| Power Cord Length | 5-11/16 in |
| EER | 9.4 |
| Operation Mode - Air Conditioners and Heat Pumps | Cool, Heat |
| Green Certification or Other Recognition | ENERGY STAR |
| BtuH | 11,600/11,400 11,600/9500 |
| Weight | 76 lb |
| CEER Rating | 9.5 |
| Remarks | Must be Installed in Solid Wall Panel |
| Operation Mode - HVAC | Cooling, Heating |
| NEMA Plug Configuration - HVAC | 6 to 20 P |
| Number of Speeds | 2 |
| Smart Connectivity | No Connectivity |
| Remote Control Functions | Full Function |
| Fits Wall Sleeve Dimensions | 15-5/8" x 26" x 16-7/8" |
| Duty Rating | Residential Grade |
| Cooling Capacity | 11,700 BtuH |
| Seacoast Corrosion Protection | No Protection |
| Programming Capability | 24 hr On/Off Timer |
| Fits Wall Sleeve - H x W x D | 15 5/8 in x 26 in x 16 7/8 in |
| Hazardous Location Division | Not Applicable |
| Mounting Sleeve Included | Sleeve Included |
| Hazardous Location Rating | Not Applicable |
| Hazardous Location Class | Not Applicable |
| Coverage Area - Minimum | 400 sq ft |
| Coverage Area - Maximum | 550 sq ft |
| Sleeve Length | 21-13/16 in |
| Sleeve Width (In.) | 26 in |
| Sleeve Height | 15-5/8 in |
| Power Source | Plug-In |
| Cooling Capacity - Maximum | 12,000 BtuH |
| Compressor Technology | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
