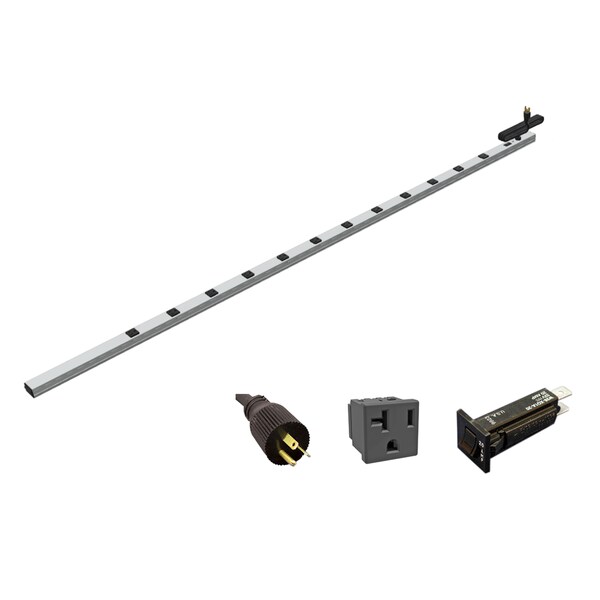

20A 12 Outlet Vertical Strip w/ switch, 15 ft. shielded cord, 77 in. long, Toolless Mount
| Item | Outlet Strip |
|---|---|
| Cord Length | 15 ft |
| Color | Natural |
| Voltage | 120 VAC |
| Metered | No |
| Features | Low-profile slim design constructed of rugged light weight aluminum; Designed for a variety of applications, specifically where electromagnetic or radio frequency interference is a concern: Shielded cord reduces EMI/ RFI and "dirty" power from utilities. Shielding is by way of 100% coverage in aluminum mylar foil with a 20 gauge drain wire; Shielded cord reduces EMI/ RFI and "dirty" power from utilities; Shielding is by way of 100% coverage in aluminum mylar foil with a 20 gauge drain wire; Each outlet strip includes a hardware mounting kit. Order P/N: 1585CLIP for additional hardware kit; Includes toolless PDU button mounting provision; Receptacles are 1" square and are equally spaced over the length of the power strip; With on/off switch and 15 or 20 Amp circuit breaker. |
| Plug Type | 5-20P |
| Rated Current (Amps) | 20 A |
| Total Outlets | 7 |
| Outlet Type | 5-20R |
| Shielded Cord | Yes |
| Rated Voltage | 120VAC |
| Outlets (Rear) | 0 |
| Outlet Strip Type | Vertical Basic PDU |
| Rotated Outlets | No |
| Cord Included | Yes |
| Outlets (Front) | 7 |
| Switch Type | On/Off Rocker Switch |
| Hospital Grade | No |
| Specifications | Heavy duty cord, either 12 gauge (12/3 SJT) or 14 gauge (14/3 SJT) wire for extreme temperature ranges and integral molded plug; Plug types for 15 Amp models are NEMA 5-15P straight blade or NEMA L5-15P locking type; Plug types for 20 Amp models are NEMA 5-20P straight blade or NEMA L5-20P locking type; Rated 15 or 20 amps, 120 volts; UL/cUL Listed Standard UL1363 file No. E166039 & CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04; NOTE #1: Outlet strips can NOT be used between the front & rear panel rails of rack cabinets as they (and the equipment plugs) will interfere with mounted equipment and mounted accessories; NOTE #2: To properly use on rack cabinets, allow sufficient depth BEHIND the rear panel rails for vertically mounting to the cabinet; TAA compliant for GSA Schedule purchases; RoHS Compliant; Manufactured in North America. |
| Surge Protection | No |
| Additional Description | 20A 12 Outlet Vertical Strip w/ switch, 15 ft. shielded cord - 77" long, Toolless Mount |
| Package Quantity | 1 |
