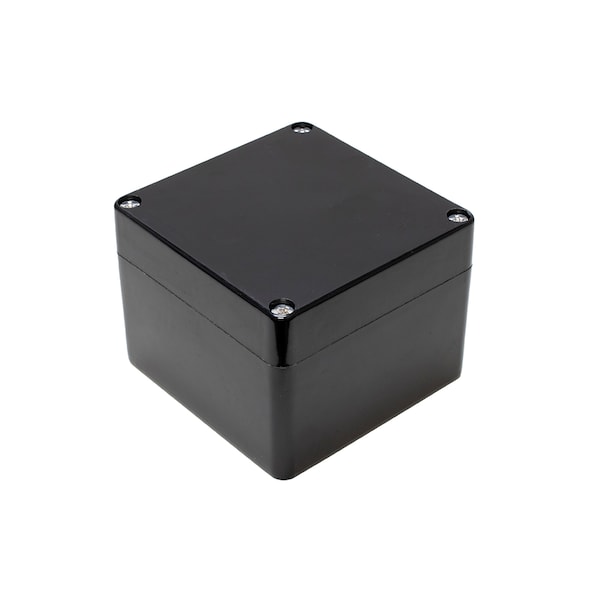

Glass Reinforced Polyester Electrical Enclosures, 4.72 in H, 3.57 in D, 4.78 in W, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 4.78 in |
| Nominal Height | 4.72 in |
| Nominal Depth | 3.57 in |
| Enclosure NEMA Rating | NEMA 1, 4, 4X, 12, 13 |
| Material of Enclosure | Glass Reinforced Polyester |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Black |
| Finish | Smooth |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| IP Rating | IP66 |
| Key Features | Molded from a black, glass reinforced polyester. Smooth finish; Includes gasketed lid with two piece "tongue & groove" construction; Heavy duty, thick wall design; North American Mark of Safety - C UL & UL listed. Industrial Control Panel Enclosure Certified to NEMA 4, 4X standards (UL 508A) - File #E65324 and IP66 Rated; Enclosures have an impact rating of IK09 in conformity with IEC 62208 and IEC 62262; Lid contains self captivated stainless steel screws; Gasket material is silicone sponge with temperature rating of -40 degrees C to +100 degrees C (-40 degrees F to +212 degrees F); Easy wall mounting via "through box - blind hole" construction, outside of the gasket protection (see photos below); Internal mounting shelf & bonding / mounting nuts molded in (see "open" photos or drawings for more details); Optional 16 gauge, galvanized steel inner panels available (see drawings for details and part number listing below). |
| UL File | E65324 |
| Flame Rating | UL94 V-0 |
| Package Quantity | 1 |
