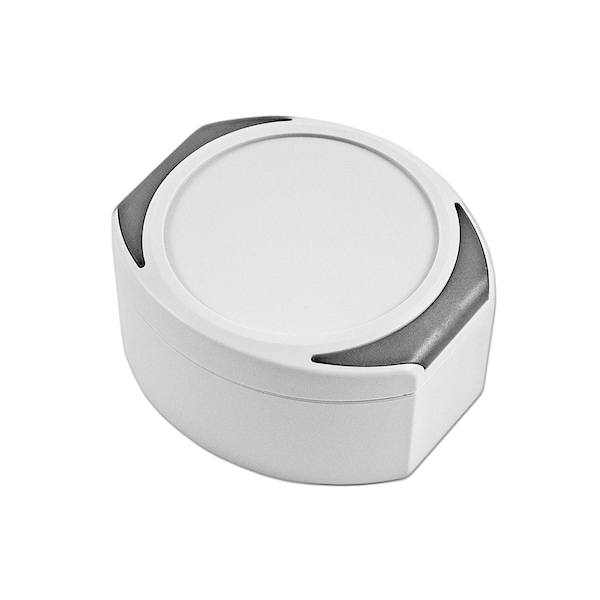

Plastic Electrical Enclosures, 4.33 in H, 2.17 in D, 3.82 in W, NEMA 4X, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 3.82 in |
| Nominal Height | 4.33 in |
| Nominal Depth | 2.17 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | Plastic |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Key Features | Premium plastic, UV-resistant, Luran enclosures for outdoor applications; Shallow lid, deep body; Captive, stainless steel - lid screws; Enclosure can be mounted to wall or shelf after closing the lid; Integrated 1.7 mm recess in lid for membrane keypads and front panels; Silicone gasket standard (-50ºC up to +140ºC); Degree of protection: IP 66; Enclosure is a light grey, RAL 7035 Luran - UL 94 HB flammability rating; Clip-on design covers, plastic polyoxymethylene (POM), anthracite grey, RAL 7016 |
| Package Quantity | 1 |
