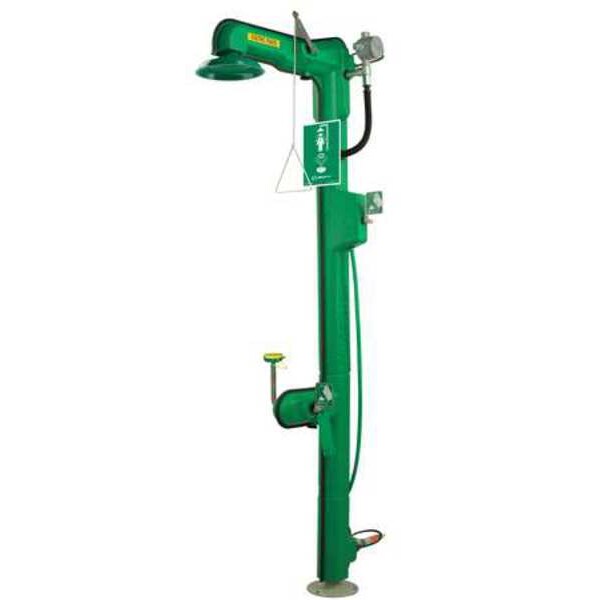

Shower with Eyewash, Floor Mount, Stainless Steel Pipe, 95 1/2 in H, No Bowl Bowl, Green
| Item | Shower with Eyewash |
|---|---|
| Height | 95 1/2 in |
| Color | Green |
| Mount Type | Floor |
| Environment | Freezing Temperatures, Hazardous Location |
| Shower Activation | Pull Rod |
| Pipe Material | Stainless Steel |
| Standards | ANSI Z358.1, CSA Certified |
| Inlet (Location) | 1 1/4 in NPT Female ( Bottom/ Top ) with Freeze Protection Valve |
| Shower Head Material | ABS Plastic |
| Shower Spray Head Diameter | 10-5/8 in |
| Eyewash Bowl Material | No Bowl |
| Inlet Pipe Size | 1-1/4 in |
| Includes | AXION(R) MSR Hydrodynamic Designed Green ABS Plastic 10-5/8 in Showerhead, Inspection Tag, Powder-Coated Cast Iron 9 in Diameter Floor Flange, Thermostatically Controlled Electric Heat Traced Cable Protected by 3/4 in (1.9 cm) Insulation and UV Protected ABS Green Plastic Jacket, Universal Sign |
| Eyewash Activation | Pull Rod |
| Electrical Ratings | 120 V AC |
| ANSI Compliant | Yes |
| Head Dia. | 11 in |
| Valve Material | Chrome Plated Brass |
| Fitting Material | Galvanized Steel |
| Temp. Control | Heat Cable Traced Self Regulating |
| ADA Compliance | No |
| Eye Wash Covering | Yes |
| Width | 21 in |
| Heat Traced | Yes |
| Features | Rated Class 1, Div 2, Group B, C and D Temperature Code T6 |
| Shower Handle Length | 28-1/4 in |
| Depth | 43-1/4 in |
| Voltage | 120 V AC |
| Mounting Style | Standard |
| Coverage | Eyes, Face |
| Includes Drench Hose | Yes |
| Inlet Pipe Gender | Female |
| Includes Foot Pedal | No |
| Barrier Free | No |
| Outlet Pipe Thread Type | IPS |
| Inlet Pipe Thread Type | NPT |
| Mount Hole Diameter | 3/8 in |
| Minimum Operating Temperature | -30 deg F |
| Bowl Diameter | 11 in |
| Eyewash Handle Material | Stainless Steel |
| Inlet Connection Location | Top, Bottom |
| Installation Type | Plumbed |
| Assembly | Assembled |
| Series | AXION MSR |
| Valve Features | Freeze Protection |
| Hazardous Location Rating | Class I/Division 2 |
| Eyewash Spray Head Style | Covered |
| ADA Compliant | No |
| Bowl Style | No Bowl |
| ANSI Compliance | Primary |
| Electrical Connection Type | Hardwired |
| Includes Showerhead Shroud | No |
| NEMA Rating | 4 |
| Shower Spray Head Material | Plastic |
| Outlet Pipe Size | 1-1/4 in |
| Electrical Cord Length | Not Available |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
