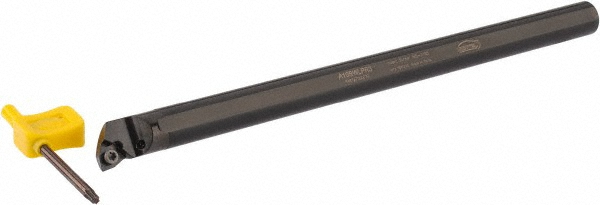

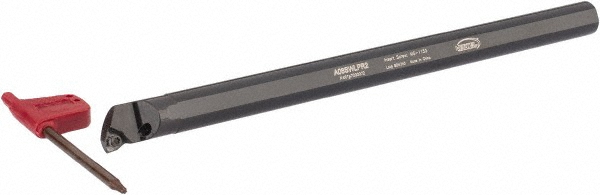

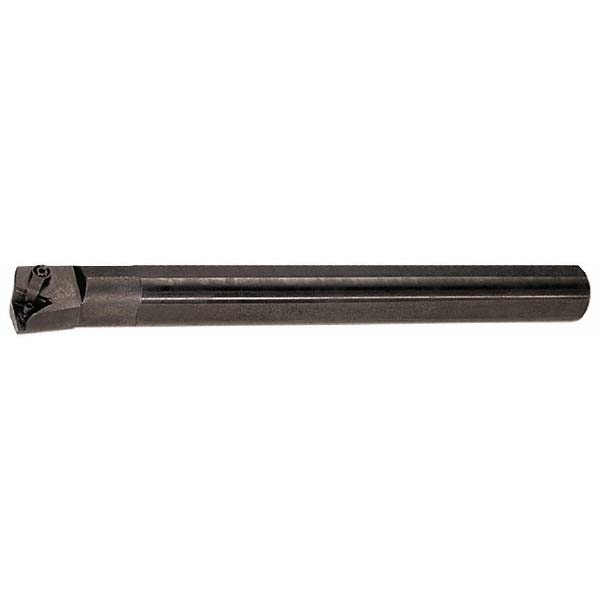

8.0000" OAL, Screw, Uses WP.. 32.52 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.6000 |
|---|---|
| Toolholder Style | A-SWLP |
| Tool Material | Steel |

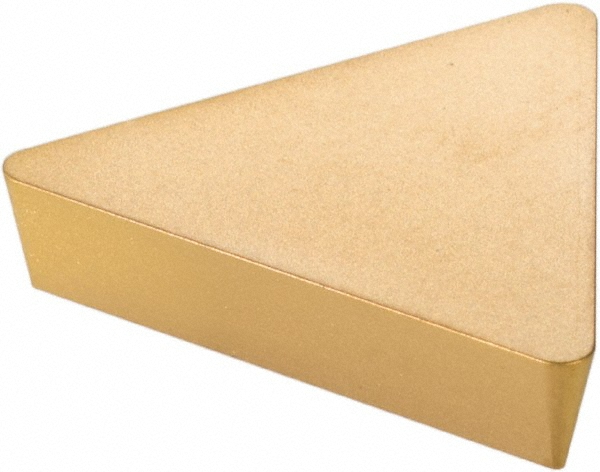

| Insert Compatibility | WP.. 32.52 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 8.0000 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -5 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3120 |
| Center to Cutting Edge (Decimal Inch) | 0.3120 |
| Coolant Hole Thread Size (Inch) | 1/16-27 NPT |
| UNSPSC Code | 23241601 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Through | Yes |
| Country of Origin | China |
| MSC Number | MSC# 05696042 |
