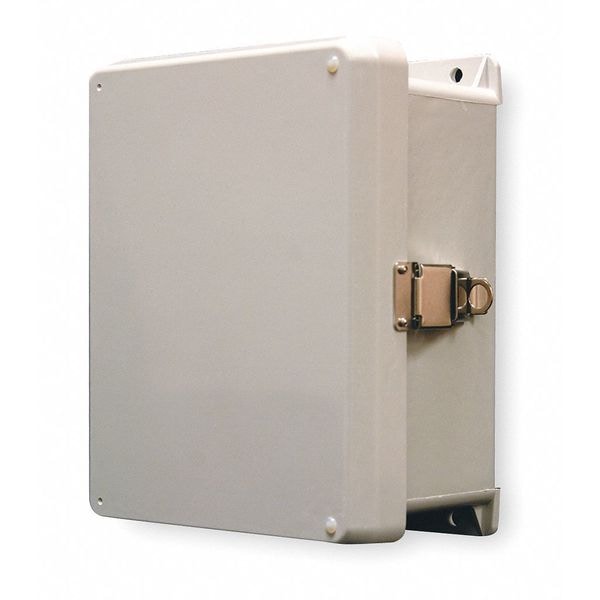

Fiberglass Reinforced Polyester Electrical Enclosures, 11.31 in H, 5.43 in D, 9 in W, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 9 in |
| Nominal Height | 11.31 in |
| Nominal Depth | 5.43 in |
| Enclosure NEMA Rating | NEMA 3, 3R, 4, 4X, 12, 13 |
| Material of Enclosure | Fiberglass Reinforced Polyester |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Smooth |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| IP Rating | 65 |
| Gasket | Polyurethane |
| Enclosure Cover Features | Opaque, Stainless Steel Hinge, Latched |
| Interior Panel | 2HPZ7, 2HRK8, 2HRK9 |
| Standards | IEC 439-1, IEC 529, EN 50298, UL 508A, CE Certified, RoHS Compliant |
| Series | VJ |
| Usable Opening Depth | 5.12 in |
| Package Quantity | 1 |
