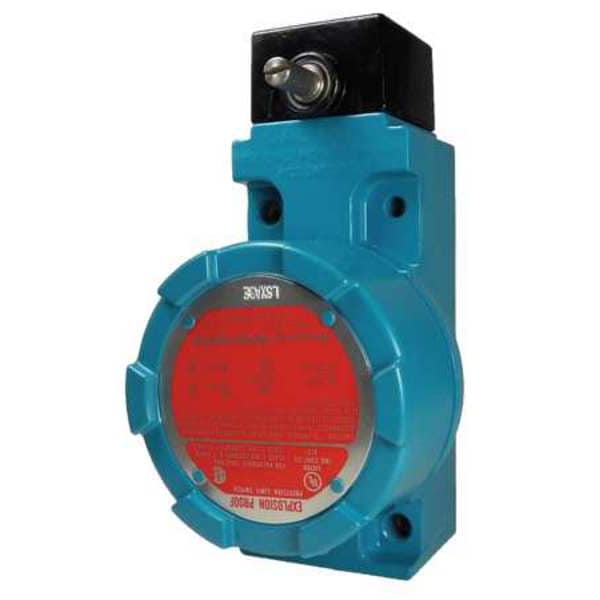

Interruptor límite en ubicación peligrosa, sin palanca, rotativo, 2NC/2NO, 10A @ 600V AC, Ubicación del actuador: lateral.
| Item | Hazardous Location Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Rotary |
| Actuator Style - Limit Switch | No Lever, Rotary |
| Contact Form- Switches | 2NC/2NO |
| Actuator Location - Limit Switch | Side |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | 10 A @ 250 V |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Depth | 2.44 in |
| Body Width - Limit Switch | 2 in |
| Actuator Location (Limit Switch) | Side |
| Body Material | Aluminum |
| Movement | CCW Maintained, CW Maintained |
| Operating Force | 4.0 in-lb |
| Roller Width | 0.19 in |
| Standards | CSA, UL |
| DC Contact Rating | 10 A @ 250 V |
| Body Height - Limit Switch | 4-3/4 in |
| Stem Thread - Limit Switch | No Stem |
| Contact Form | 2NO, 2NC, DPDT |
| Travel | Differential Travel 35 Degrees , Maximum Pretravel 65 Degrees , Minimum Over Travel 20 Degrees |
| Electrical Connection | Screw Terminals |
| IP Rating | No IP Rating |
| NEMA Rating | 1, 13, 3, 4, 6, 7 |
| AC Contact Rating | 10 A @ 600 V |
| Number of Poles | 2 |
| Actuator Style | Rotary Head, No Lever |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Diagonal) |
| Amps | 10 |
| Wiring Entry | 1/2"-14 NPT |
| Voltage Rating | 600VAC/250VDC |
| Boot Sealed Actuator (Limit Switch) | No |
| Mounting Hole Spacing - Limit Switch | 2.34 in x 1.16 in |
| Operating Temp. Range | 10 to 250 deg F |
| Actuator Style (Limit Switch) | Rotary, No Lever |
| Height | 5-3/4 in |
| Boot Sealed Actuator - Limit Switch | No |
| Certification | Class1, Division1, Groups B, C, D), 9 ,Class 2, Division1, Groups E, F, G |
| Series | LSX |
| Basic Actuator Style (Limit Switch) | Rotary |
| Contact Form - Limit Switch | 2NO, 2NC |
| Actuator Location | Side |
| Body Style (Limit Switch) | Standard |
| Width | 2 in |
| Limit Switch Style | Hazardous Location Limit Switch |
| Body Depth - Limit Switch | 2.44 in |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Arm Material | Not Applicable |
| Differential Travel | 35 Degrees |
| Roller Material | Not Applicable |
| Actuator Length | Not Applicable |
| Arm Width | Not Applicable |
| Arm Depth | Not Applicable |
| Mounting Hole Diameter | 0.2 in |
| Boot Sealed Actuator | No Boot Included |
| Roller Position | Not Applicable |
| Includes Actuator | No Actuator Included |
| Arm Length - Minimum | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Arm Length - Maximum | Not Applicable |
| NEMA Enclosure Rating | 4, 13, 1, 6, 3, 7 |
| Reset Travel | Not Applicable |
| Mounting Hole Horizontal Center to Center Distance | 29 mm |
| Action | Maintained |
| Operating Torque - Maximum | 4 in-lb |
| Operating Temperature - Minimum | 10 deg F |
| Operating Temperature - Maximum | 250 deg F |
| Lamp Type | Not Applicable |
| Roller Adjustability | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Mounting Hole Vertical Center to Center Distance | 86 mm |
| Pretravel | 65 Degrees |
| Body Depth | 2.44 in |
| Body Height | 4-3/4 in |
| Directional Movement | CW, CCW |
| Overtravel | 20 Degrees |
| Mounting Style | Surface |
| Plunger Adjustability | Not Applicable |
| Total Travel | Not Applicable |
| Body Width | 2 in |
| Operating Torque - Minimum | Not Applicable |
| Arm Adjustability | Not Applicable |
| Roller Diameter | Not Applicable |
| Number of Mounting Holes | 2 |
| Body Configuration | Non Plug-In |
| Operating Force - Maximum | Not Applicable |
| Wireless Network Interface | Not Applicable |
| Package Quantity | 1 |
