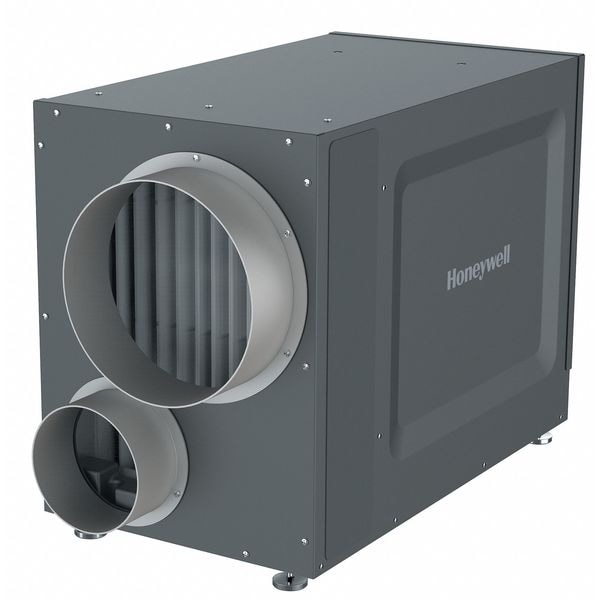

Ducted Dehumidifier, Gray, 14 21/64 in, Metal, 120 V AC
| Item | Ducted Dehumidifier |
|---|---|
| Voltage | 120 V AC |
| Width | 14-21/64 in |
| Includes | 2 Filter Doors |
| Height | 19-21/64 in |
| Color | Gray |
| Capacity/24 Hrs. @ 60% RH | 90 pt |
| Application | Ducted |
| Cabinet Material | Metal |
| Humidity Range | 0 to 99 RH |
| Defrost Type | Temperature Sensor |
| Refrigerant Charge | 25 oz |
| Refrigerant Type | R-410A |
| Fan Speed | Single Speed |
| Ambient Temp. Range | 34 to 135 deg F |
| NEMA Plug Configuration | 5-15P |
| Hz | 60 |
| Agency Compliance | ETL listed Per Standard UL 474, CSA C22.2 No. 92 |
| Fan CFM | 320 |
| Amps | 5.2 |
| Depth | 32-3/16 in |
| Filter | MERV 11 |
| Overall Width | 14-3/8 in |
| Standards | CSA C22.2 No. 92, ETL Listed UL 474 |
| Weight | 95 lb |
| Overall Height | 19-3/8 in |
| HVAC Mounting Options | Dedicated Return to Dedicated Supply, Dedicated Return to Main Supply, Main Return to Main Return, Main Return to Main Supply |
| Control Modes | Ventilation |
| Air Flow @ 0.0 in wg | 320 cfm |
| Overall Depth | 32-3/16 in |
| Drain Connection Type | FNPT |
| Operating Humidity Range | 0 to 90% |
| Output Amperage | 0.85 A |
| Frequency | 60 Hz |
| Recommended Environments | Residential Homes |
| Number of Speeds | 1 |
| Energy Star Certified | No |
| Housing Material | Metal |
| Air Flow @ 0.6 in wg | 215 cfm |
| Drain/Pump Options | Continuous Drain |
| Operating Temperature Range | 34 to 135 deg F |
| Filter Performance Rating | MERV 11 |
| For Duct Diameter | 10 in |
| Control Type | Remote |
| Filters Out | Mildew, Mold, Odors |
| Drain Connection Size | 3/4 in |
| Coverage Area | 2,800 sq ft |
| NEMA Plug Rating | 5-15P |
| Electrical Connection Type | Plug-In |
| Energy Performance | 2.9 L/kW hr |
| Series | DR90 |
| Housing Color | Gray |
| Bypass Opening Diameter | 6 in |
| Daily Water Removal Capacity (70F/60 RH) | 65 pt |
| Daily Water Removal Capacity (80F/60 RH) | 90 pt |
| Housing Thickness | 20 ga |
| Dehumidification Method | Standard Refrigerant |
| Manufacturer Warranty Length | 5 yr (Limited) |
| Input Amperage | 5.3 A |
| Daily Water Removal Capacity (60F/60 RH) | 47 pt |
| Includes Air Filter | Yes |
| Energy Rating | 92 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
