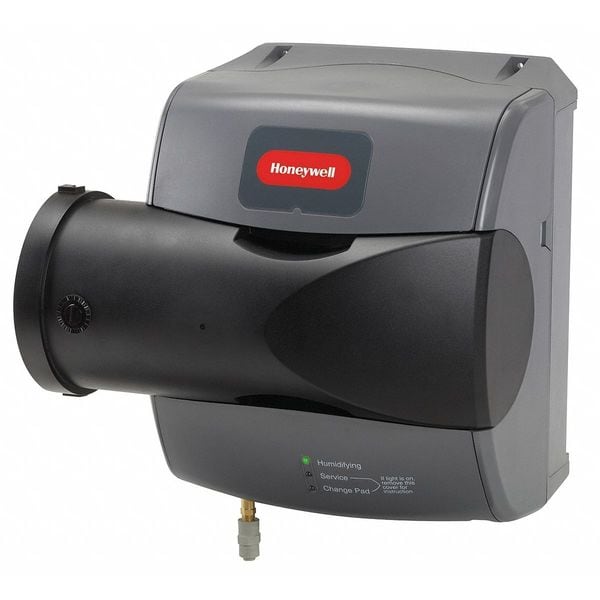

Furnace Humidifier, 2,000 sq. ft., Drain Bypass, Gray
| Item | Furnace Humidifier |
|---|---|
| Voltage | 24 V AC |
| Drain Type | Gravity Drain |
| Color | Gray |
| Depth | 10-1/8 in |
| Height | 14 in |
| Width | 14-1/2 in |
| Max. Square Foot Capacity | 2,000 |
| Plenum Opening Required | 9-7/16 in H x 9-5/16 in W |
| Includes | Humidifier Fan, Humidipro Digital Humidity Control, Mounting Template, Water Supply Line |
| Wick Treated With | AgION Antimicrobial Agent |
| Type | Drain Bypass |
| Number of Speeds | 1 |
| Replacement Filter | HC22A1007 |
| Amps AC | 0.5 A |
| Warranty | 5 yr |
| Daily Humidification Output | 9.1 to 15 gal |
| Drain Hose Diameter | 1/2 in |
| Operating Temperature Range | 34 to 90 deg F |
| Humidification Method | Evaporation |
| Coverage Area | 2,000 sq ft |
| Terminal Designations | C, Gf, Gt or W, HUM, Power In, Power Out, R, Sensor |
| Bypass Opening Diameter | 6 in |
| Includes Mounting Hardware | Yes |
| Humidifier Type | Bypass |
| Manufacturer Warranty Length | 5 yr |
| For Plenum Opening Height | 9-7/16 in |
| Amperage | 0.5 A |
| Drain Hose Material | Plastic |
| Window Frost Protection | Yes |
| Water Supply | Water Line |
| Operating Humidity Range | 0 to 95% |
| Overall Height | 14 in |
| Overall Width | 14-1/2 in |
| Control Type | Remote |
| Includes Saddle Valve | Yes |
| Humidity Settings | 20 to 60% |
| Pad/Wick Change Reminder | Yes |
| Housing Color | Gray |
| For Plenum Opening Width | 9-5/16 in |
| Outdoor Temperature Sensor | Yes |
| Overall Depth | 10-1/8 in |
| Humidistat Control Modes | Manual, Automatic |
| Drain Hose Length | 10 ft |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
