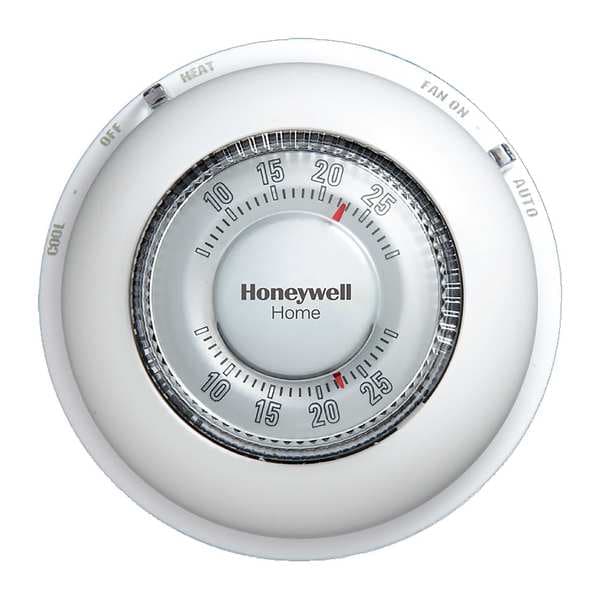

Manual Thermostat, 1 H, 1 C, Battery Assisted Power Stealing, 20/30VAC
| Item | Manual Thermostat |
|---|---|
| Voltage | 20/30VAC |
| Stages Heat | 1 |
| Mounting Type | Round |
| Color | Premier White |
| Control Range | 40 to 90 deg F |
| System Switching | Heat-Cool-Off |
| Stages Cool | 1 |
| Height | 1-3/4 in |
| Width | 3-11/16 in |
| Dual Transformer Compatible | Yes |
| Power Method | Battery Assisted Power Stealing |
| Fan Switching | Auto-on |
| Depth | 1-3/4 in |
| Mounting | Round |
| Diameter | 3-11/16 in |
| For Use With | Gas, Oil, Electric, Forced Warm Air, Hot Water, Steam or Gravity, Cooling, 4 or 5 Wire Systems |
| Includes | Subbase |
| Terminal Designations | R, RC, W, Y, G, O, B |
| Features | Mercury Free |
| Display Type | Analog |
| Dehumidification Control | No |
| Humidification Control | No |
| Stages | 1H/1C Conventional, 1H/1C Heat Pump |
| Control Type | Dial |
| Type | Mechanical Nonprogrammable Conventional Systems or HP |
| System/Fan Settings | Auto-On, Heat-Off-Cool |
| Number of Heating Stages - Conventional System | 1 |
| Digit Size | Standard |
| Number of Cooling Stages - Conventional System | 1 |
| Number of Cooling Stages - Heat Pump System | 1 |
| Electrical Connection Type | Hardwired |
| Overall Depth | 1-3/4 in |
| Frequency | 50 Hz, 60 Hz |
| Maximum Control Temperature | 90 deg F |
| Includes Positive Off | Yes |
| Shape | Round |
| Thermostat Type | Low Voltage |
| Mercury Free | Yes |
| Temperature Readout | Yes |
| Operating Humidity Range | 5% to 90% |
| System Settings | Cool-Heat-Off |
| Mounting Direction/Shape | Round |
| Application | Cool, Heat |
| Temperature Scale | Fahrenheit |
| Overall Width | 4-13/16 in |
| Changeover Type | Manual |
| Fan Settings | Auto-On |
| Mounting Direction | Vertical |
| Number of Heating Stages - Heat Pump System | 1 |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Hydronic Systems |
| Maximum Operating Humidity | 90 % |
| Housing Color | White |
| Minimum Control Temperature | 40 deg F |
| Overall Diameter | 3-11/16 in |
| Temperature Sensitivity | +/-2 deg F |
| Temperature Control Range | 40 to 90 deg F |
| Minimum Operating Humidity | 5 % |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
