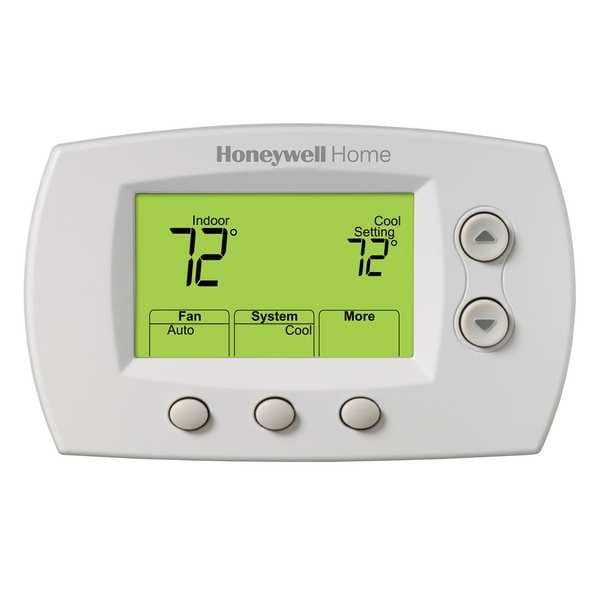

Wireless Thermostat, 3 Heat Pump or 2 Conventional H, 2 C, Battery, 20/30VAC
| Item | Wireless Thermostat |
|---|---|
| Voltage | 20/30VAC |
| Stages Heat | 3 Heat Pump or 2 Conventional |
| Mounting Type | Horizontal |
| Color | Premier White |
| Control Range | Heat 40 Degrees to 90 Degrees F, Cool 50 Degrees to 99 Degrees F |
| System Switching | Auto-Heat-Cool-Off-Emergency |
| Stages Cool | 2 |
| Height | 3-9/16 in |
| Width | 5-13/16 in |
| Dual Transformer Compatible | No |
| Power Method | Battery |
| Programmable Fan | No |
| Battery Backup | Yes |
| Terminal Designations | C, R, Rc, Rh, W-O/B, W2-Aux/E, Y, Y2, G, L, RAS |
| Features | Nonprogrammable |
| Includes | Mfr.No.TH5320R1002 Thermostat and (2) AA Thermostat Batteries |
| Depth | 1-1/2 in |
| For Use With | Heating, Cooling Systems Enabled with RedLink(TM) Zoning Panels |
| Humidification Control | No |
| WiFi Capability | No |
| Display Type | Digital |
| Footnotes | 1, 3 |
| Remote Sensing Capability | Yes |
| Low Battery Indicator | Yes |
| Key Pad Lockout | No |
| Fan Switching | Auto-on |
| Dehumidification Control | No |
| Temporary Temperature Hold | Yes |
| Temperature Limiting | Yes |
| Stages | 2H/2C Conventional, 3H/2C Heat Pump |
| Control Type | Push Button |
| Type | Replacement |
| Sensor Type | Thermistor |
| Overall Width | 5-13/16 in |
| Application | Cool, Heat |
| Overall Height | 3-9/16 in |
| Number of Cooling Stages - Conventional System | 2 |
| Fan Settings | Auto |
| Programming Capability | Not Programmable |
| Mounting Direction | Horizontal |
| Overall Depth | 1-1/2 in |
| Mounting Direction/Shape | Horizontal |
| Sensor Location | Remote |
| Includes Positive Off | Yes |
| System Settings | Auto-Cool-Emergency Heat-Heat-Off |
| Number of Zones | 1 |
| Temperature Scale | Fahrenheit |
| Housing Color | White |
| Number of Heating Stages - Conventional System | 2 |
| Contact Rating | 20 V AC, 30 V AC |
| Temperature Differential | 1 Degrees F |
| Shape | Rectangle |
| Digit Size | Standard |
| Number of Heating Stages - Heat Pump System | 3 |
| Number of Cooling Stages - Heat Pump System | 2 |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Hydronic Systems, Millivolt |
| System/Fan Settings | Auto, Auto-Cool-Emergency Heat-Heat-Off |
| Backlit Type | Press Button |
| Temperature Control Range | 32 to 120 deg F |
| Maximum Control Temperature | 90 deg F |
| Remote Control Functions | Temperature Control |
| Thermostat Type | Low Voltage |
| Changeover Type | Manual, Automatic |
| Minimum Control Temperature | 32 deg F |
| Output Signal | Not Applicable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
