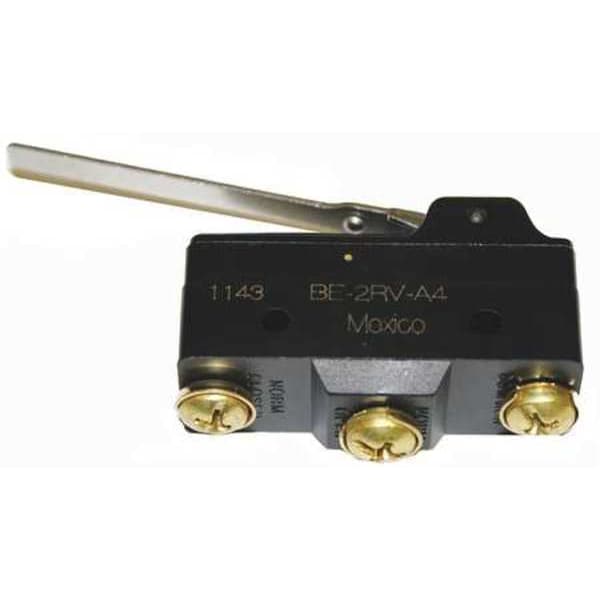

Interruptor Industrial de Acción Instantánea, Bisagra, Actuador de Palanca, SPDT, Calificación de Contacto de 25A @ 480V AC.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Lever, Hinge |
| AC Contact Rating - Snap Action Switch | 25 A @ 480 V |
| DC Contact Rating - Snap Action Switch | 25 A @ 250 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | 2-1/2 in |
| Height - Snap Action Switch | 1 in |
| Width - Snap Action Switch | 2 in |
| Depth - Snap Action Switch | 0.7 in |
| Differential Travel | 0.109 in |
| Length | 2 in |
| Operating Force | 3.5 oz |
| Type of Actuator | Straight Lever |
| Mounting Dimension | 1.00" Centers |
| Terminal Type | Screw |
| Contact Form | 1NO/1NC |
| Voltage Rating | 250VAC |
| Current Rating | 25 A |
| Max. Pretravel | 0.63 in |
| Housing Material | General Purpose Phenolic |
| Standards | CE, CSA, ENEC, UKCA, UL Listed |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Height | 1 in |
| Depth | 0.7 in |
| Series | BE |
| Watertight - Snap Action Switch | No |
| Electrical Connection - Snap Action Switch | Screw |
| Release Force | 0.5 ozf |
| Actuator Length | 2-1/2 in |
| Over Travel | 0.03 in |
| Operating Temp. Range | -67 Degrees to 185 Degrees F |
| DC Contact Rating | 25 A @ 250 V |
| AC Contact Rating | 25 A @ 125 to 480 V |
| Roller Diameter | Not Applicable |
| Operating Temperature - Maximum | 185 deg F |
| Actuator Style | Lever |
| Lever Actuator Length | 2-1/2 in |
| Body Width | 1.94 in |
| Overall Width | 1.94 in |
| Electrical Connection | Screw |
| Overall Depth | 0.7 in |
| Overall Height | 1 in |
| Roller Material | Not Applicable |
| Operating Temperature - Minimum | -67 deg F |
| Center Mounting Hole Distance | 1 in |
| Operating Force - Maximum | 3.5 ozf |
| Differential Travel - Maximum | 0.109 in |
| Body Material | Phenolic |
| Operating Force - Minimum | Not Applicable |
| Differential Travel - Minimum | Not Applicable |
| Body Height | 1 in |
| Mounting Hole Diameter | 1/8 in |
| Body Depth | 0.7 in |
| Overtravel | 0.078 in |
| Roller Adjustability | Not Applicable |
| Pretravel | 5/8 in |
| Roller Position | Not Applicable |
| Package Quantity | 1 |
