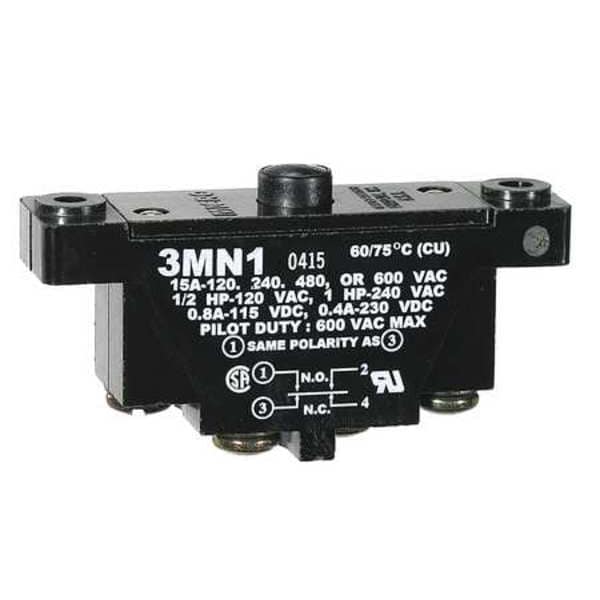

Interruptor de Acción Rápida Industrial, Pasador, Actuador de Embolo, DPDT, Clasificación de Contacto de 15A @ 600V AC
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Pin |
| AC Contact Rating - Snap Action Switch | 15 A @ 600 V |
| DC Contact Rating - Snap Action Switch | 0.8 A @ 115 V |
| Contact Form- Switches | DPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 1 in |
| Width - Snap Action Switch | 2 in |
| Depth - Snap Action Switch | 0.7 in |
| Electrical Connection - Snap Action Switch | Screw |
| Series | 3MN |
| Actuator Length | 2 in |
| Type of Actuator | Pin Plunger |
| Differential Travel | 0.015 to 0.025 in |
| Contact Form | 1NO/1NC |
| Length | 2 in |
| Watertight - Snap Action Switch | No |
| Mounting Dimension - Snap Action Switch | 2.13 in (Centers) |
| Housing Material | General Purpose Phenolic |
| Height | 1 in |
| Depth | 0.7 in |
| Mounting Dimension | 2.13" Centers |
| Max. Pretravel | 0.06 in |
| Operating Temp. Range | -67 Degrees to 185 Degrees F |
| Release Force | 6 ozf |
| Current Rating | 15a |
| Operating Force | 12.0 to 20.0 oz |
| Terminal Type | Screw |
| Over Travel | 0.08 in |
| Voltage Rating | 600VAC |
| Standards | CSA, UL Listed |
| AC Contact Rating | 15 A @ 480 V |
| DC Contact Rating | 0.8 A @ 115 V |
| Products By Industry | Fabricated Metals |
| Center Mounting Hole Distance | 2.13 in |
| Lever Actuator Length | Not Applicable |
| Body Height | 1 in |
| Operating Temperature - Minimum | -67 deg F |
| Overtravel | 0.08 in |
| Operating Force - Minimum | 12 ozf |
| Roller Position | Not Applicable |
| Overall Height | 1 in |
| Overall Depth | 0.7 in |
| Roller Adjustability | Not Applicable |
| Overall Width | 2 in |
| Operating Force - Maximum | 20 ozf |
| Operating Temperature - Maximum | 185 deg F |
| Body Material | Phenolic |
| Body Width | 2 in |
| Pretravel | 0.06 in |
| Electrical Connection | Screw |
| Differential Travel - Maximum | 0.025 in |
| Differential Travel - Minimum | 0.015 in |
| Actuator Style | Plunger |
| Body Depth | 0.7 in |
| Roller Material | Not Applicable |
| Roller Diameter | Not Applicable |
| Package Quantity | 1 |
