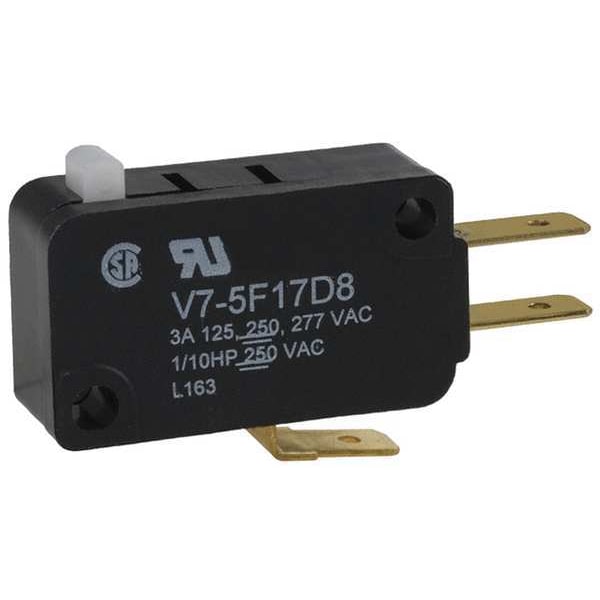

Interruptor de acción rápida en miniatura, con actuador de pasador y émbolo, de un solo polo con interruptor doble (SPDT), con capacidad de contacto de 3 amperios a 240 voltios de corriente alterna.
| Item | Miniature Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Pin |
| AC Contact Rating - Snap Action Switch | 3 A 125 V, 250 V, 277 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 0.63 in |
| Width - Snap Action Switch | 1.14 in |
| Depth - Snap Action Switch | 0.4 in |
| Actuator Length | Not Applicable |
| Operating Temp. Range | -40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F] |
| Series | V7 |
| Over Travel | 0.05 in |
| Max. Pretravel | 0.047 in |
| Current Rating | 3 A |
| Watertight - Snap Action Switch | No |
| Operating Force | 0.53 oz |
| Standards | CSA, ENEC, RoHS, UL Listed |
| Length | 1.14 in |
| Mounting Dimension | 0.41 x 0.87" Centers |
| Terminal Type | Quick Connect |
| Contact Form | 1NO/1NC |
| Depth | 0.4 in |
| Height | 0.63 in |
| Mounting Dimension - Snap Action Switch | 0.87 in (Centers) |
| Electrical Connection - Snap Action Switch | Quick Connect |
| Voltage Rating | 250VAC |
| Differential Travel | 0.002 to 0.010 in |
| Type of Actuator | Pin Plunger |
| Housing Material | PCT Polyester Thermoplastic |
| Release Force | Not Applicable |
| AC Contact Rating | 3 A @ 125 V |
| DC Contact Rating | Not Applicable |
| Differential Travel - Minimum | 0.002 in |
| Actuator Style | Plunger |
| Electrical Connection | Quick Connect |
| Operating Force - Minimum | Not Applicable |
| Roller Material | Not Applicable |
| Body Height | 0.63 in |
| Overtravel | 0.05 in |
| Operating Force - Maximum | 0.53 ozf |
| Body Material | Polyester |
| Center Mounting Hole Distance | 0.88 in |
| Mounting Hole Diameter | 1/8 in |
| Roller Diameter | Not Applicable |
| Differential Travel - Maximum | 0.01 in |
| Roller Adjustability | Not Applicable |
| Body Width | 1.14 in |
| Lever Actuator Length | Not Applicable |
| Pretravel | 0.047 in |
| Overall Depth | 0.4 in |
| Overall Width | 1.14 in |
| Body Depth | 0.4 in |
| Overall Height | 0.63 in |
| Operating Temperature - Minimum | -40 deg F |
| Roller Position | Not Applicable |
| Operating Temperature - Maximum | 365 deg F |
| Package Quantity | 1 |
