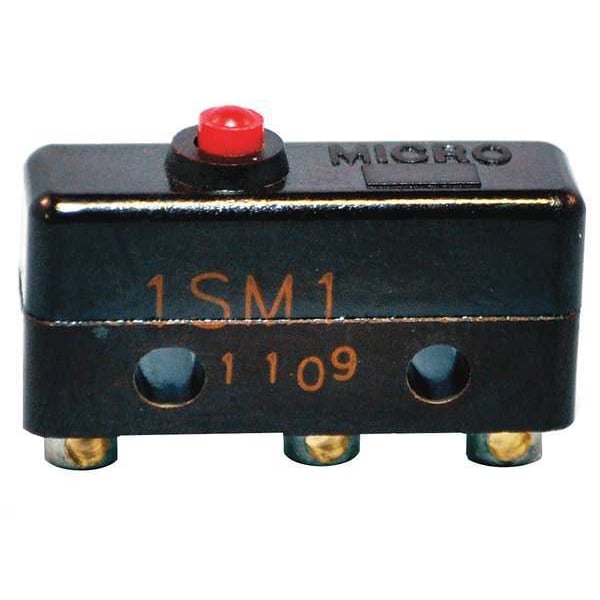

Interruptor de acción rápida en miniatura, con actuador de pasador y émbolo, SPDT, 5A en 240V CA como capacidad de contacto.
| Item | Miniature Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Pin |
| AC Contact Rating - Snap Action Switch | 5 A @ 240 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 1/2 in |
| Width - Snap Action Switch | 0.8 in |
| Depth - Snap Action Switch | 1/4 in |
| Max. Pretravel | 0.03 in |
| Operating Force | 3.0 to 5.0 oz |
| Over Travel | 0.005 in |
| Housing Material | General Purpose Phenolic |
| Electrical Connection - Snap Action Switch | Solder Lug |
| Mounting Dimension - Snap Action Switch | 0.38 in (Centers) |
| Type of Actuator | Pin Plunger |
| Current Rating | 5 A |
| Height | 1/2 in |
| Mounting Dimension | 0.38" Centers |
| Contact Form | 1NO/1NC |
| Differential Travel | 0.004 in |
| Release Force | 1 ozf |
| Terminal Type | Solder Lug |
| Actuator Length | 0.8 in |
| Depth | 1/4 in |
| Series | SM |
| Length | 0.8 in |
| Voltage Rating | 250VAC |
| Watertight - Snap Action Switch | No |
| Standards | CE 61058-1, CSA LR41372, ENEC, UL E12252 |
| Operating Temp. Range | -65 Degrees to 250 Degrees F |
| DC Contact Rating | Not Applicable |
| AC Contact Rating | 5 A @ 240 V |
| Operating Temperature - Minimum | -65 deg F |
| Operating Force - Maximum | 5 ozf |
| Body Height | 1/2 in |
| Center Mounting Hole Distance | 0.38 in |
| Roller Position | Not Applicable |
| Overall Height | 1/2 in |
| Roller Material | Not Applicable |
| Overtravel | 0.005 in |
| Differential Travel - Minimum | Not Applicable |
| Lever Actuator Length | Not Applicable |
| Roller Adjustability | Not Applicable |
| Overall Width | 0.8 in |
| Operating Force - Minimum | 3 ozf |
| Pretravel | 0.03 in |
| Differential Travel - Maximum | 0.004 in |
| Overall Depth | 1/4 in |
| Electrical Connection | Solder |
| Roller Diameter | Not Applicable |
| Operating Temperature - Maximum | 250 deg F |
| Body Material | Phenolic |
| Actuator Style | Plunger |
| Body Depth | 1/4 in |
| Body Width | 0.8 in |
| Package Quantity | 1 |
