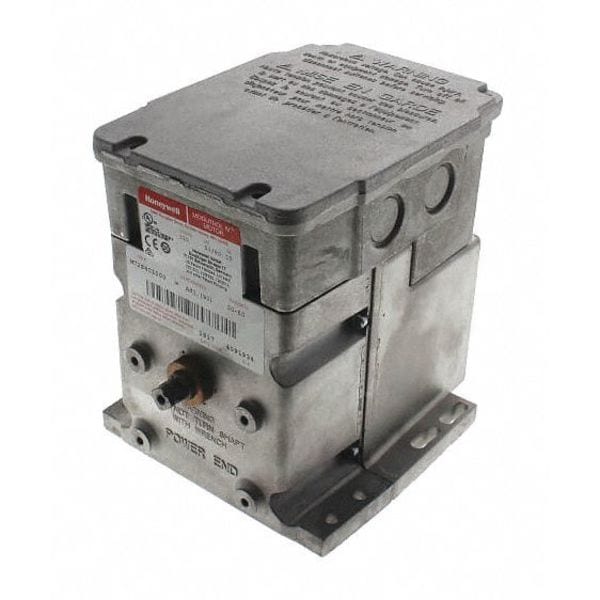

Replaces M744T1004. 120- V 50/60 Hz. 15V
| Mounting Type | Foot Mounted |
|---|---|
| Spring Return | Non-Spring Return |
| Signal Type | Proportional |
| Torque | 150 in-lb |
| Voltage | 120V AC |
| Width | 5-1/2 in |
| Shaft Type | Double-Ended |
| For Use With | Combustion Air Dampers Used In Residential or Commercial HVAC Equipment, Control of Economizer Systems, Ventilation Dampers |
| Includes | Transformer |
| Replaces Honeywell Motors | Mfr. No. M744T1004 |
| Power Consumption | 15 VA |
| Switch Type | 2 SPDT |
| Motor Direction | CW |
| Item | Actuator |
| Stroke Deg. | 90 to 160 |
| Depth | 7-5/16 in |
| Timing | 30 to 60 sec |
| Height | 6-7/16 in |
| Power Rating | 13 W |
| Ambient Temp. Range | -40 to 150 deg F |
| Electrical Connections | Screw Terminals |
| Overall Height | 6-1/2 in |
| Overall Width | 5-1/2 in |
| Minimum Operating Temperature | -40 deg F |
| Shaft Rotation | CW |
| NEMA Rating | 3 |
| Stroke Degree | 90 to 160 Degrees |
| Electrical Connection Type | Terminals |
| Product Type | Actuator |
| Valve Application | Damper |
| Rated Torque | 150 in-lb |
| IP Rating | Not Applicable |
| Time to Close | 60 sec |
| Application | Dampers, Economizers |
| Contact Form | SPDT |
| Maximum Operating Temperature | 150 deg F |
| Overall Depth | 7-3/8 in |
| Number of Auxiliary Switches | 2 |
| Input Voltage | 120V AC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
