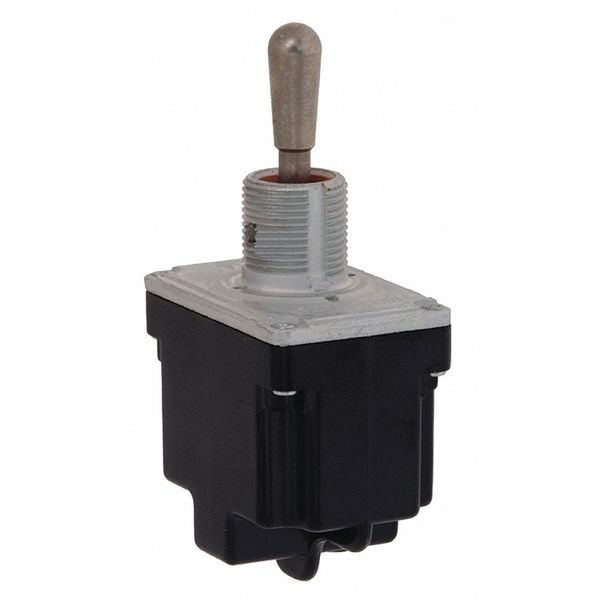

Interruptor basculante, DPDT, 6 conexiones, momentáneo encendido/mantenido apagado/momentáneo encendido, 1/2 hp, 10A @ 277V AC.
| Switch Function | Momentary On/Maintained Off/Momentary On |
|---|---|
| Contact Form | DPDT |
| HP | 1/2 hp |
| Actuator Style | Standard Lever |
| Amps | 10A @ 125VAC, 10A @ 250VAC, 10A @ 28VDC |
| Number of Connections | 6 |
| Stem Length | 0.47 in |
| Terminals | Screw |
| Actuator Length | 0.67 in |
| Includes | Bushing, Case, Cover, Toggle Lever |
| Actuator Color | Silver |
| Standards | CE, CSA, MIL-DTL-3950, UL Listed |
| Mounting Hole | 1/2 in dia |
| Stem Color | Silver |
| DC Contact Rating | 18 A @ 28 V |
| AC Contact Rating | 10 A @ 125 V, 10 A @ 250 V |
| Item | Toggle Switch |
| Special Features | Silver Cadmium Oxide Contacts |
| Operating Temp. Range | -85 to 160 deg F |
| Stem Dia. and Thread Size | 0.470 in |
| Recommended Use | Applications Requiring Military Qualification or Military Seal Rating |
| IP Rating | IP67 |
| Product Type | Toggle Switch |
| Series | TL |
| Number of Poles | 2 |
| Operating Temperature - Minimum | -85 deg F |
| Operator Illumination Style | Non-Illuminated |
| Horsepower | 1/4 hp @ 125V AC, 250 hp @ 250V AC |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| NEMA Enclosure Rating | Not Applicable |
| Base Type | Step |
| Stem Thread Size | 15/32-32 UNS-2A |
| Switch Function Configuration | Momentary On/Off/Momentary On |
| Mounting Hole Diameter | 0.47 in |
| Stem Diameter | 0.47 in |
| Number of Positions | 3 |
| Terminal Connection Type | Screw Terminals |
| Overall Height | 2.49 in |
| Actuator Material | Metal |
| Operating Temperature - Maximum | 160 deg F |
| Overall Width | 0.89 in |
| Overall Depth | 1.13 in |
| Metal Actuator Finish | Silver |
| Package Quantity | 1 |
