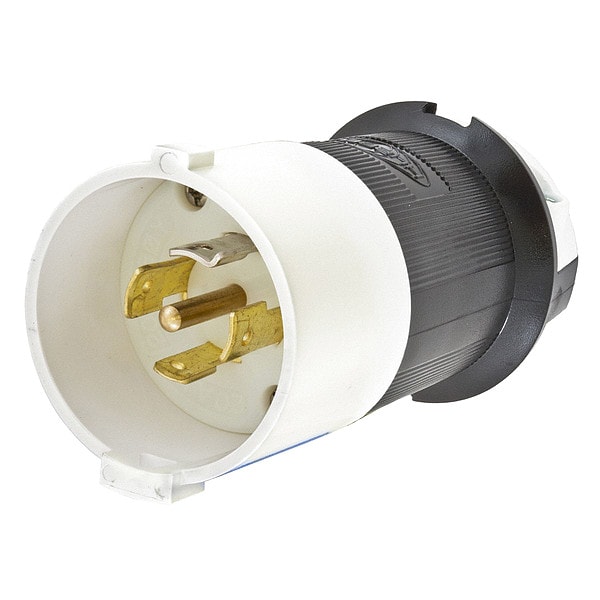

Clavija Twist-Lock de 20A 4P 5W 120/208VAC L21-20P BK/WT
| Item - Plugs and Receptacles | Locking Plug |
|---|---|
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Shrouded |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | L21-20P |
| Voltage - Plugs and Receptacles | 120/208V AC |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Phase | Three |
| Color | Black, White |
| IP Rating | IP20 |
| Amps | 20 |
| Antimicrobial | No |
| Color - Plugs and Receptacles | Black, White |
| Item | Locking Plug |
| Standards | CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 |
| Corrosion Resistant | No |
| HP | 2 |
| Cord Size | 0.35 to 1.15 in |
| Voltage | 120/208VAC |
| NEMA Configuration | L21-20 |
| Material | Nylon |
| Grade | Industrial |
| Blade Material | Brass |
| For Environment | Dry |
| Maximum Wire Size | 8 AWG |
| Housing Color | Black, White |
| Grounding | Grounded |
| For Location | Indoor |
| Polarized | Yes |
| Body Length | 2.33 in |
| Number of Blades | 5 |
| Connection Orientation | Straight |
| Minimum Wire Size | 16 AWG |
| UL 94 Flammability Rating | V-0 |
| Resistance Properties | Chemical Resistant, Impact Resistant, Watertight |
| Wire Connection Type | Screw Terminals |
| Current Rating | 20 A |
| For Maximum Cable Diameter | 1.15 in |
| Maximum Operating Temperature | 75 deg C |
| NEMA Plug Configuration | L21-20P |
| Horsepower Rating | 2 HP |
| Housing Material | Nylon |
| Shrouded | Yes |
| For Minimum Cable Diameter | 0.35 in |
| Outside Diameter | 2.33 in |
| Face Diameter | 2.23 in |
| Market | Industrial |
| Overall Length | 2.33 in |
| Voltage Rating | 120/208V AC |
| Minimum Operating Temperature | -40 deg C |
| Flammability | V0 per UL94 or CSA 22.2 No.0.17 |
| Weight (Lbs.) | 0.45 |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Package Quantity | 1 |
