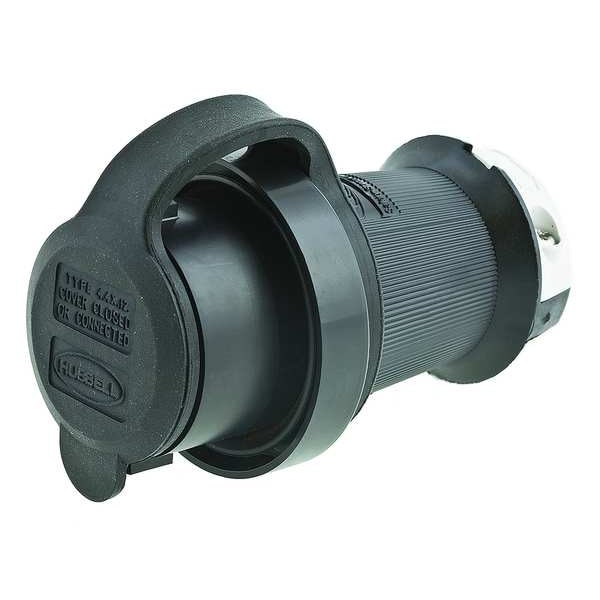

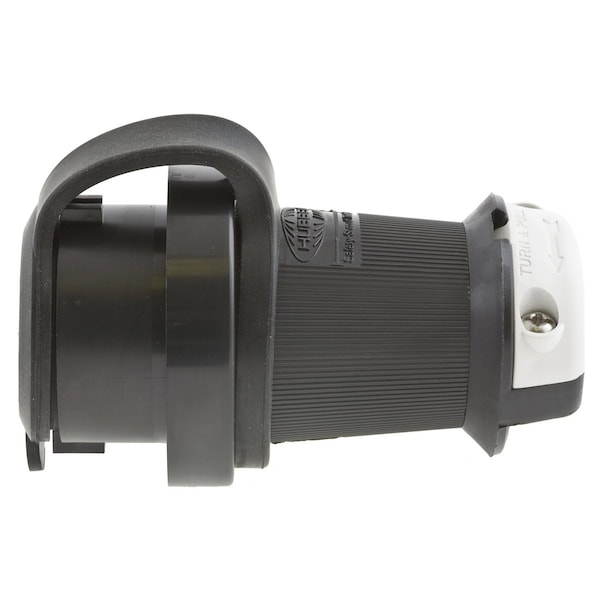

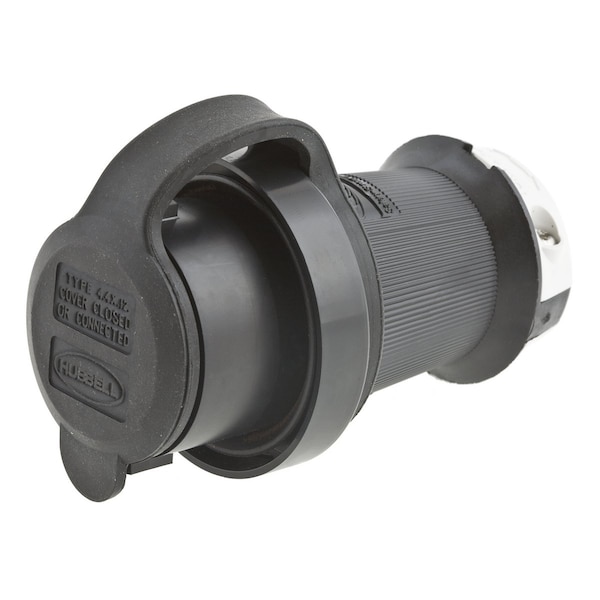

20A Watertight Twist-Lock Plug 2P 3W 277VAC L7-20P BK/WT
| Item - Plugs and Receptacles | Watertight Locking Plug |
|---|---|
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Shrouded |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | L7-20P |
| Voltage - Plugs and Receptacles | 277V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Corrosion Resistant | No |
| Color | Black, White |
| Cord Size | 0.36 to 0.93 in |
| IP Rating | IP66 |
| Grade | Industrial |
| Material | Impact Modified PBT |
| Voltage | 277VAC |
| Special Features | Moisture, Dust and Weather Resistant |
| Standards | CSA Certified Type 4, UL Listed |
| Amps | 20 |
| Item | Watertight Locking Plug |
| HP | 2.0 |
| Color - Plugs and Receptacles | Black, White |
| Antimicrobial | No |
| NEMA Rating | 4, 4X, 12 |
| For Maximum Cable Diameter | 0.93 in |
| UL 94 Flammability Rating | V-0 |
| Housing Material | Polybutylene Terephthalate |
| Maximum Wire Size | 8 AWG |
| Face Diameter | 2.77 in |
| Maximum Operating Temperature | 75 deg C |
| Number of Blades | 3 |
| Polarized | Yes |
| Shrouded | Yes |
| Market | Industrial |
| Resistance Properties | Chemical Resistant, Impact Resistant, Watertight |
| Connection Orientation | Straight |
| Voltage Rating | 277V AC |
| Housing Color | Black, White |
| Minimum Operating Temperature | -40 deg C |
| Blade Material | Brass |
| Body Length | 2.77 in |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| For Minimum Cable Diameter | 0.36 in |
| NEMA Plug Configuration | L7-20P |
| Current Rating | 20 A |
| Minimum Wire Size | 16 AWG |
| Horsepower Rating | 2 HP |
| Overall Length | 2.77 in |
| Temp. Rise | 30°C |
| Contact Material | Brass |
| Screw Material | Stainless Steel |
| Retainer Material | Clear Polycarbonate |
| Flammability | UL 94 V0 |
| Dielectric Strength | 2,000 V |
| Weight | 0.6 lb |
| Product Type | Shrouded Watertight |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
