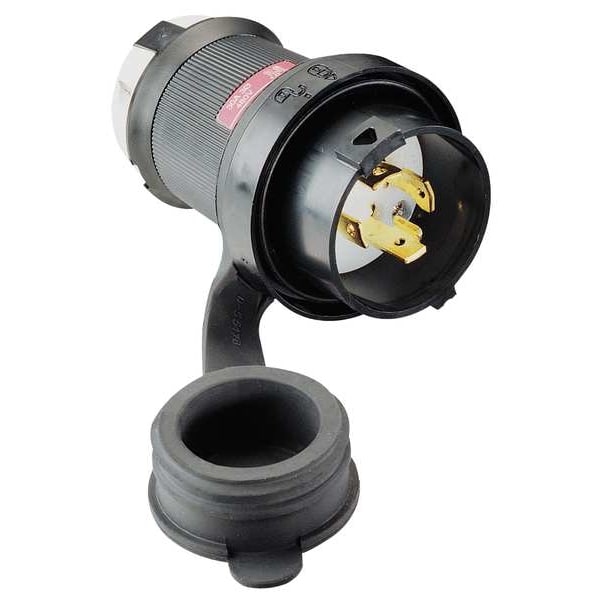

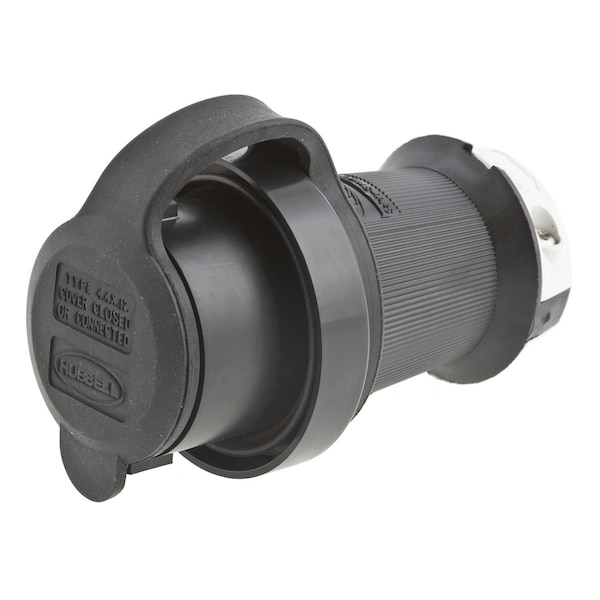

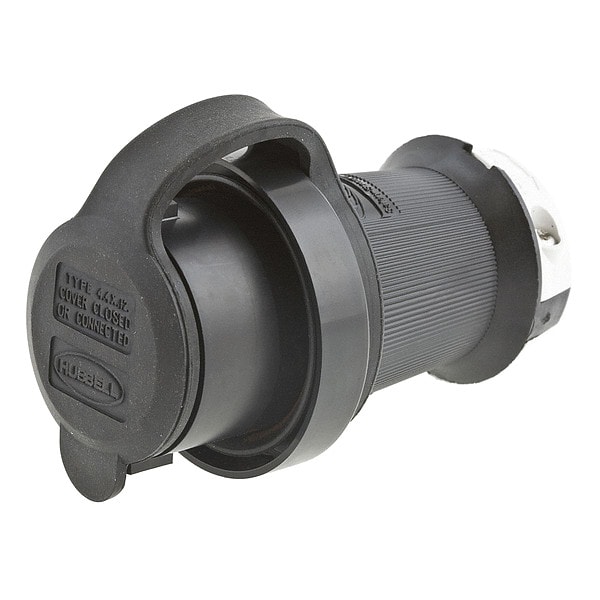

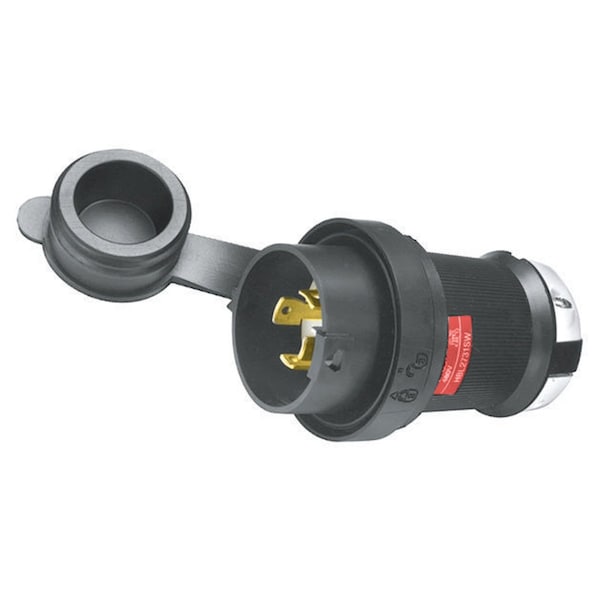

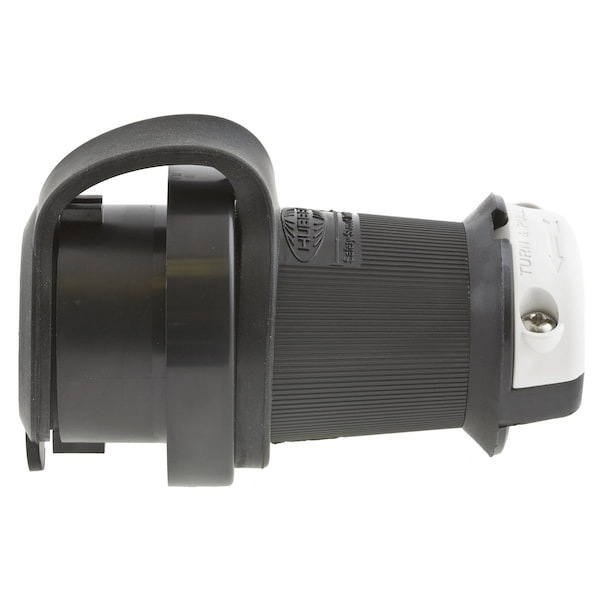

Clavija de bloqueo giratorio a prueba de agua de 30 amperios, 3 polos, 4 cables, 480VCA L16-30P negro/blanco.
| Number of Poles | 3 |
|---|---|
| Number of Wires | 4 |
| Cord Size | 0.35 to 1.15 in |
| NEMA Rating | 4, 4X, 12 |
| Shrouded / Non-Shrouded | Shrouded |
| NEMA Plug Configuration - Plugs and Receptacles | L16-30P |
| IP Rating | IP66 |
| Grade - Plugs and Receptacles | Industrial |
| Antimicrobial | No |
| Item - Plugs and Receptacles | Watertight Locking Plug |
| Color - Plugs and Receptacles | Black, White |
| Standards | CSA Certified Type 4, UL Listed |
| Phase | Three |
| Grade | Industrial |
| Voltage - Plugs and Receptacles | 480V AC |
| Color | Black, White |
| Amps - Plugs and Receptacles | 30 |
| Special Features | Moisture, Dust and Weather Resistant |
| HP | 10.0 |
| Item | Watertight Locking Plug |
| Wiring Style | Standard |
| Voltage | 480VAC |
| Material | Impact Modified PBT |
| Amps | 30 |
| Corrosion Resistant | No |
| UL 94 Flammability Rating | V-0 |
| Voltage Rating | 480V AC |
| Minimum Operating Temperature | -40 deg C |
| Market | Industrial |
| Horsepower Rating | 10 HP |
| Maximum Operating Temperature | 75 deg C |
| Body Length | 2.94 in |
| Number of Blades | 4 |
| Connection Orientation | Straight |
| For Maximum Cable Diameter | 1.15 in |
| For Minimum Cable Diameter | 0.35 in |
| Wire Connection Type | Screw Terminals |
| Overall Length | 2.94 in |
| Blade Material | Brass |
| Minimum Wire Size | 16 AWG |
| Housing Material | Polybutylene Terephthalate |
| Resistance Properties | Chemical Resistant, Impact Resistant, Watertight |
| Housing Color | Black, White |
| Polarized | Yes |
| Shrouded | Yes |
| NEMA Plug Configuration | L16-30P |
| Grounding | Grounded |
| Current Rating | 30 A |
| Face Diameter | 2.77 in |
| Maximum Wire Size | 8 AWG |
| Weight | 0.7 lb |
| Temp. Rise | 30°C |
| Dielectric Strength | 2,000 V |
| Retainer Material | Clear Polycarbonate |
| Contact Material | Brass |
| Screw Material | Stainless Steel |
| Product Type | Shrouded Watertight |
| Flammability | UL 94 V0 |
| Operating Temp. | -40 to 75°C |
| Package Quantity | 1 |
