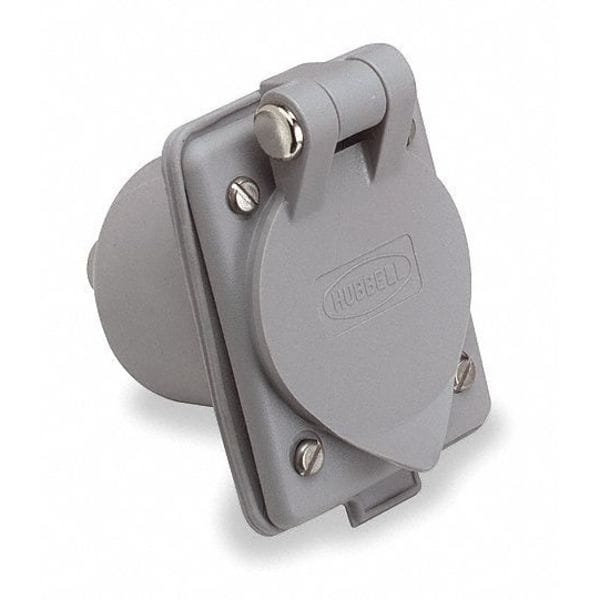

Entrada a brida, 15 amperios, 125V AC, montaje en panel, entrada y salida, 5-15P, gris.
| Item | Flanged Inlet |
|---|---|
| Item - Plugs and Receptacles | Flanged Inlet |
| Outlet Type - Plugs and Receptacles | Inlet |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Panel |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15P |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | Yes |
| Color - Plugs and Receptacles | Gray |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Material | Nylon |
| Sub-Category | Inlets |
| HP | 1/2 hp |
| Amps | 15 |
| Corrosion Resistant | No |
| IP Rating | IP20 |
| Amps - Plugs and Receptacles | 15 |
| Standards | CSA Certified C22.2 No. 42, NEMA WD-6, UL E2186 |
| Outlet Type | Inlet |
| Wiring Method | Side |
| Mounting Type | Panel |
| Color | Gray |
| Voltage | 125VAC |
| Number of Gangs | 1 |
| Phase | Single |
| Weather Resistant | Yes |
| Width | 1.32 in |
| Height | 1.47 in |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | 75 deg C |
| Wire Connection Type | Screw Terminals |
| Voltage Rating | 125V AC |
| Current Rating | 15 A |
| Flange Type | Flanged |
| Number of Blades | 3 |
| NEMA Plug Configuration | 5 to 15 P |
| Cover Type | Flip-Up Cover |
| Connection Orientation | Straight |
| Grade | Marine |
| Housing Color | Gray |
| Resistance Properties | Weather Resistant |
| Grounding | Grounded |
| Flange Shape | Rectangular |
| Surge Protection | No |
| Horsepower Rating | 0.5 HP |
| Market | Industrial |
| Receptacle Type | Single |
| Minimum Operating Temperature | -40 deg C |
| Rating | 15A 125V, 2p3w |
| Poles and Wires | 2 Pole, 3 Wire Grounding |
| Approvals | UL, CSA |
| Blade Type | Straight Blade |
| Moisture Resistance | IP20 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Cord Range | 0.230"-0.360" |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Display Size | Standard Sized Product |
| Connectivity | Terminals |
| Nema Rating | 5-15P |
| Material - Mounting Hardware | Screw Mounting |
| Wire Size | #14 AWG to #10 AWG |
| Horsepower - Maximum | 0.5 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Voltage Rating Description | 125 V |
| Dimensions | 1.47 in x 1.32 in x 1.47 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed, File E2186 |
| Application | Marine Wiring Devices |
| Length | 1.47 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Amperage Rating | 15 A |
| Current / Amperage Rating | 15 A |
| Wattage | 1875 W |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Insulation | Insulated Body |
| Item Type | Single |
| Package Quantity | 1 |
