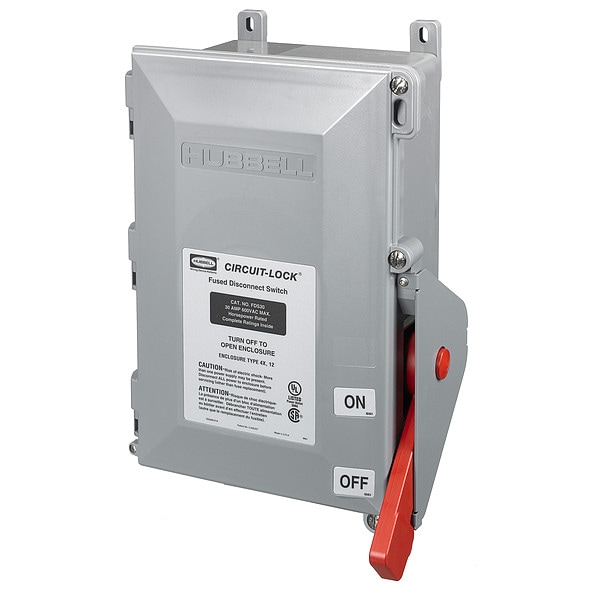

Interruptor de desconexión fusible cerrado, 600V AC, NEMA 12K, 4, 4X.
| Item | Enclosed Disconnect Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy Duty |
| Amps | 30 |
| Voltage | 600 V AC |
| Phase | 3 |
| HP | 20 hp @ 600V AC |
| NEMA Enclosure Type | 4, 12K, 4X |
| IP Rating | 66 |
| Material | Non-Metallic |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Neutral Assembly Included | No |
| Use | Class J Fuse |
| Depth | 7.3 in |
| Standards | UL/CSA |
| Includes | (2) 1 in Conduit Hubs, Mounting Feet |
| Width | 11-1/2 in |
| Fusible / Nonfusible | Fusible |
| Height | 15 in |
| Handle Color | Red |
| Features | Adjustable Mounting Feet |
| Enclosure Type | Enclosed |
| Switch Type | Three Pole Complete Unit |
| Standard Conduit Size | 1 in |
| Horsepower @ 480V AC | 125 HP |
| Resistance Properties | Impact-Resistant, UV-Resistant |
| Horsepower @ 240V AC | 60 HP |
| Housing Material | PBT |
| For Environment | Indoor, Indoor Rated, Outdoor Rated |
| Minimum Mounting Depth | 9.12 in |
| Current Rating | 30 A |
| For Fuse Class | Class J |
| NEMA Enclosure Rating | 12K, 4X |
| Environment | Indoor, Outdoor |
| Maximum Mounting Depth | 19-1/4 in |
| Mounting Style | Surface Mount |
| Horsepower @ 600V AC | 20 HP |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Listing and Certifications | UL Listed and CSA Certified |
| Amperage | 30 A |
| Package Quantity | 1 |
