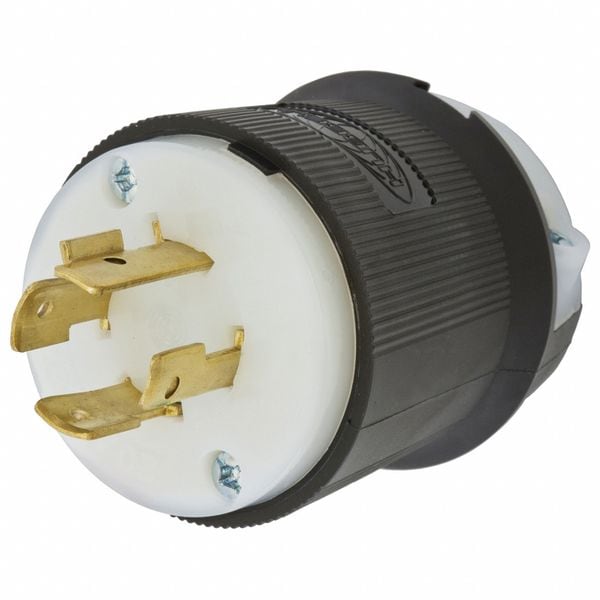

HBL2431ST - Twist-Lock® EdgeConnect™ Plug with Spring Termination, 20A, 3P 480V, L16-20P, Black and White Nylon
| Wiring Style | Standard |
|---|---|
| Number of Poles | 3 |
| Phase | Three |
| IP Rating | IP20 |
| Item | Locking Plug |
| Standards | Certified to CSA C22.2 No. 42, Federal Specifications W-C-596, Listed to UL 498 |
| Grade | Federal Specification |
| Minimum Operating Temperature | -40 deg C |
| Minimum Wire Size | 14 AWG |
| For Minimum Cable Diameter | 0.35 in |
| For Maximum Cable Diameter | 1.15 in |
| Maximum Wire Size | 8 AWG |
| Polarized | Yes |
| Current Rating | 20 A |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Maximum Operating Temperature | 75 deg C |
| Wire Connection Type | Spring Clamp Terminals |
| Voltage Rating | 480V AC |
| Shrouded | No |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | HB |
| Blade Material | Copper Alloy |
| NEMA Plug Configuration | L16-20P |
| Housing Color | Black, White |
| Market | Industrial |
| Number of Blades | 4 |
| Grounding | Grounded |
| Housing Material | Nylon |
| Number Of Wires | 4 |
| Series | EdgeConnectâ„¢ |
| Item Type | Plug |
| Package Quantity | 1 |
