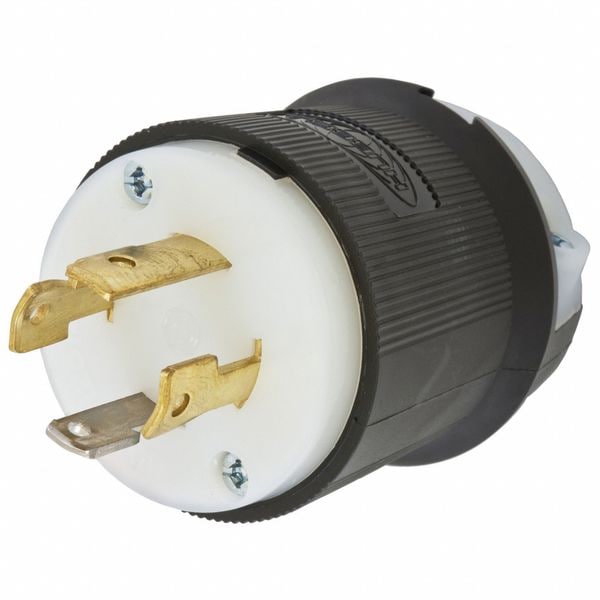

HBL2711ST - Twist-Lock® EdgeConnect™ Plug with Spring Termination, 30A, 125/250V, L14-30P, Black and White Nylon
| Wiring Style | Standard |
|---|---|
| Number of Poles | 3 |
| Phase | Three |
| Standards | Certified to CSA C22.2 No. 42, Federal Specifications W-C-596, Listed to UL 498 |
| IP Rating | IP20 |
| Item | Locking Plug |
| Grade | Federal Specification |
| Shrouded | No |
| Blade Material | Copper Alloy |
| Minimum Wire Size | 14 AWG |
| Wire Connection Type | Spring Clamp Terminals |
| Voltage Rating | 125/250V AC |
| Market | Industrial |
| Polarized | Yes |
| Housing Material | Nylon |
| Housing Color | Black, White |
| Minimum Operating Temperature | -40 deg C |
| Maximum Operating Temperature | 75 deg C |
| Number of Blades | 4 |
| Connection Orientation | Straight |
| NEMA Plug Configuration | L14-30P |
| UL 94 Flammability Rating | HB |
| Maximum Wire Size | 8 AWG |
| Grounding | Grounded |
| For Minimum Cable Diameter | 0.35 in |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| For Maximum Cable Diameter | 1.15 in |
| Current Rating | 30 A |
| Series | EdgeConnectâ„¢ |
| Item Type | Plug |
| Number Of Wires | 4 |
| Package Quantity | 1 |
