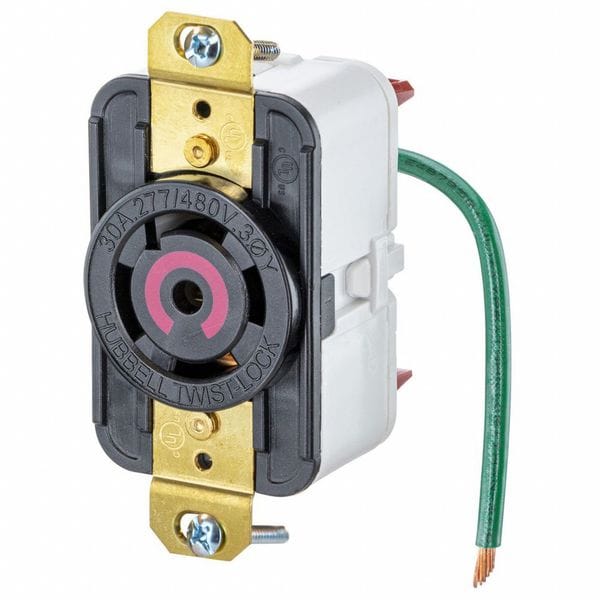

HBL2820ST - Twist-Lock® EdgeConnect™ Receptacle with Spring Termination, 30A, 3P 277/480V, L22-30R, Black
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | L22-30 |
| Length | 3.28 in |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Phase | Three |
| IP Rating | IP20 |
| Standards | CSA C22.2, UL 498 |
| Polarized | Yes |
| Minimum Wire Size | 14 AWG |
| Maximum Operating Temperature | 75 deg C |
| NEMA Enclosure Rating | 1 |
| Flange Diameter | Not Applicable |
| Number of Gangs | 1 |
| Contact Material | Brass |
| Maximum Wire Size | 8 AWG |
| Shrouded | No |
| Grounding | Grounded |
| Face Plate Width | 1.7 in |
| Voltage Rating | 277/480V AC |
| Includes | Mounting Strap |
| Resistance Properties | Impact Resistant |
| Mount Hole Center-to-Center Height | 3.28 in |
| Housing Color | Black |
| Cover Type | No Cover |
| Horsepower Rating | 10 HP |
| Minimum Operating Temperature | -40 Degrees C |
| Flange Height | Not Applicable |
| Face Diameter | 1.56 in |
| NEMA Receptacle Configuration | L22-30R |
| Current Rating | 30 A |
| Face Plate Height | 2.77 in |
| AFCI | No |
| Connection Orientation | Straight |
| Includes Mounting Hardware | Yes |
| Housing Material | Nylon |
| UL 94 Flammability Rating | V-2 |
| Flange Width | Not Applicable |
| Flange Type | Non-Flanged |
| Mount Type | Flush |
| Overall Depth | 1.468 in |
| Wire Size | 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded) |
| Height | 1.468 in |
| Dimensions | 3.28 in x 1.7 in x 1.468 in |
| Width | 1.7 in |
| Amperage Rating | 30 A |
| Item Type | wye, 30A, 3 phase with Spring Termination, 277/480V AC Twist-Lock Receptacle |
| Package Quantity | 1 |
