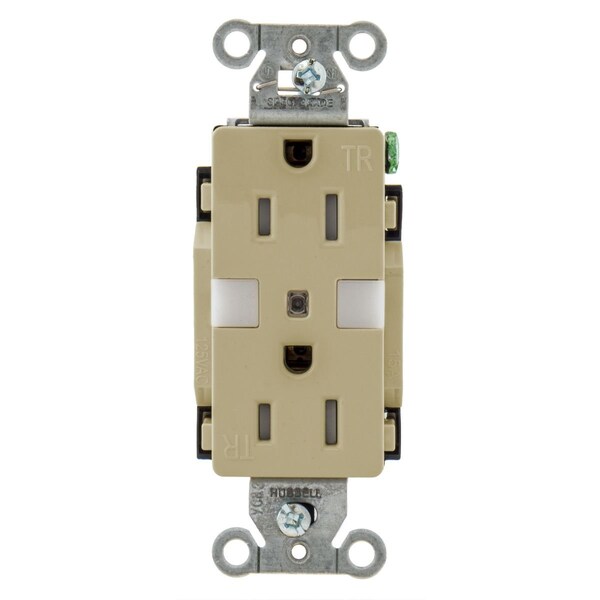

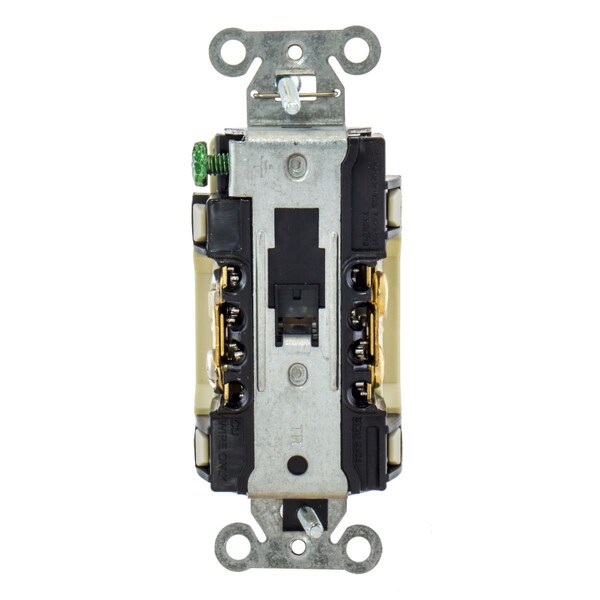

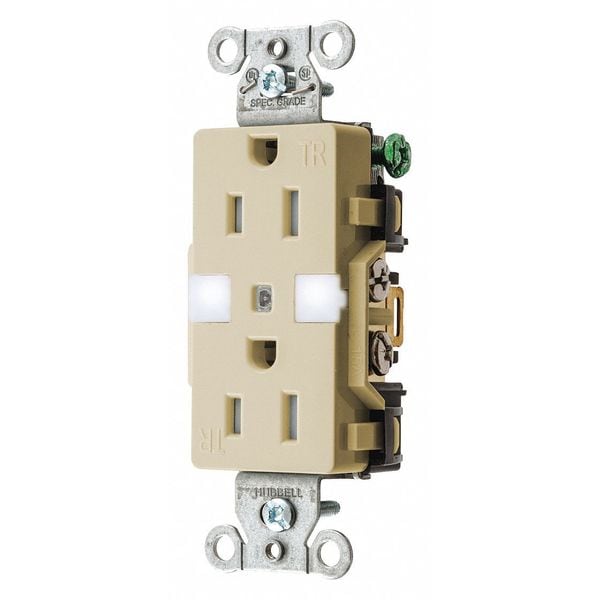

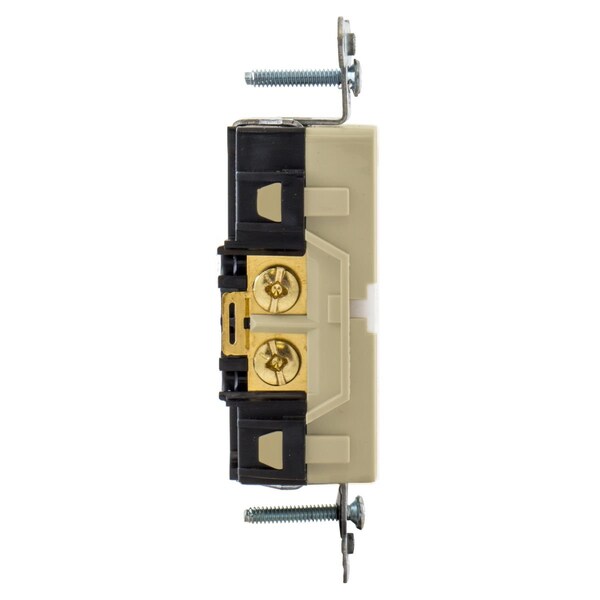

Receptacle, 15 A Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-15R, Ivory
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Sub-Category | Duplex Receptacles |
| Corrosion Resistant | No |
| Material | Nylon |
| Standards | CSA Certified C22.2, NEMA WD-6, UL 498 |
| Description | Grounding |
| HP | 1/2 hp |
| Amps - Plugs and Receptacles | 15 |
| Phase | Single |
| Number of Gangs | 1 |
| Wiring Method | Back, Side |
| Color | Ivory |
| Height | 1.29 in |
| Width | 1.15 in |
| Connection Orientation | Straight |
| Horsepower Rating | 0.5 HP |
| Minimum Wire Size | 14 AWG |
| Cover Type | No Cover |
| Grounding | Grounded |
| Wire Connection Type | Screw Terminals |
| Current Rating | 15 A |
| Market | Commercial |
| Mount Type | Flush |
| Shrouded | No |
| Surge Protection | No |
| Housing Material | Nylon |
| Maximum Wire Size | 10 AWG |
| GFCI | No |
| Resistance Properties | Tamper Resistant |
| Voltage Rating | 125V AC |
| NEMA Enclosure Rating | 1 |
| NEMA Receptacle Configuration | 5-15R |
| Receptacle Type | Decorator Duplex |
| Includes | Mounting Hardware |
| Polarized | Yes |
| Minimum Operating Temperature | -40 deg F |
| UL 94 Flammability Rating | V-2 |
| Features | Night Light |
| AFCI | No |
| Includes Mounting Hardware | Yes |
| Overall Depth | 1.3 in |
| Maximum Operating Temperature | 167 deg F |
| Grade | Federal Specification |
| Flange Type | Non-Flanged |
| Housing Color | Ivory |
| Material - Mounting Hardware | Screw Mounting |
| Connectivity | Back and Side Wired |
| Application | Commercial Specification Grade |
| Wire Size | #14 AWG to #10 AWG |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current / Amperage Rating | 15 A |
| Style | Style Line Decorator |
| Wattage | 1875 W |
| Type | Nightlight |
| Item Type | Decorator Duplex |
| Dielectric Strength | Withstands 2,000V minimum |
| Display Size | Standard Sized Product |
| Series | Commercial Specification Grade |
| Dimensions | 3.29 in x 1.15 in x 1.29 in |
| Length | 3.29 in |
| Nema Rating | 5-15R |
| Horsepower - Maximum | 0.5 |
| Amperage Rating | 15 A |
| Voltage Rating Description | 125 V |
| Package Quantity | 1 |
