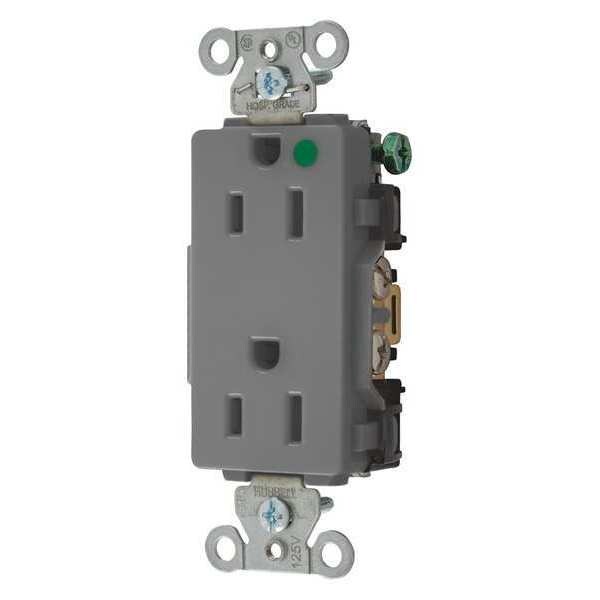

Receptacle, 15 A Amps, 125V AC, Flush Mount, Standard Duplex Outlet, 5-15R, Gray
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Gray |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| NEMA Rating | 1 |
| IP Rating | IP20 |
| Phase | Single |
| Standards | CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498 |
| Wiring Method | Back, Side |
| Number of Gangs | 1 |
| HP | 1/2 hp |
| Amps - Plugs and Receptacles | 15 |
| Special Features | Standard |
| Mounting Type | Flush |
| Corrosion Resistant | No |
| Material | Nylon |
| Weather Resistant | No |
| Outlet Type | Duplex |
| Color | Gray |
| Description | Smooth |
| Amps | 15 |
| Voltage | 125VAC |
| Sub-Category | Duplex Receptacles |
| Width | 1.57 in |
| Height | 1.15 in |
| Includes Mounting Hardware | Yes |
| For Location | Indoor |
| NEMA Enclosure Rating | 1 |
| GFCI | No |
| Face Plate Height | 2.7 in |
| Mount Hole Center-to-Center Height | 3.3 in |
| Grade | Hospital Grade Fed. Spec. |
| Face Plate Width | 1.6 in |
| Maximum Operating Temperature | 167 deg F |
| Minimum Operating Temperature | -40 deg F |
| Resistance Properties | Impact Resistant |
| Wire Connection Type | Screw Terminals |
| NEMA Receptacle Configuration | 5-15R |
| Mount Type | Flush |
| Flange Type | Non-Flanged |
| Connection Orientation | Straight |
| Receptacle Type | Decorator Duplex |
| AFCI | No |
| Horsepower Rating | 0.5 HP |
| Shrouded | No |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover |
| Overall Depth | 1.2 in |
| Current Rating | 15 A |
| Housing Color | Gray |
| Maximum Wire Size | 10 AWG |
| Grounding | Grounded |
| UL 94 Flammability Rating | V-2 |
| Cover Type | No Cover |
| Housing Material | Nylon |
| Polarized | Yes |
| Minimum Wire Size | 14 AWG |
| Voltage Rating | 125V AC |
| Contact Material | Brass |
| Market | Commercial |
| Surge Protection | No |
| Device Color | Gray |
| Face | Nylon |
| Clamping Plate | Plated steel |
| Dielectric Voltage | Withstands 2,000V minimum |
| Flammability | UL 94V-2 |
| Automatic Self-grounding Staple | Stainless steel |
| Base | PBT |
| Mounting Strap | steel |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Power Contacts | Brass |
| Operating Temperature | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Mounting Screws | Zinc plated steel |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Current Interrupting | Certified for current interrupting at full rated current |
| Ground Contacts | Brass |
| Connectivity | Back and Side Wired Screw Terminals |
| Amperage Rating | 15 A |
| Length | 3.28 in |
| Item Type | Decorator Duplex |
| Wattage | 1875 W |
| Display Size | Standard Sized Product |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Style | Style Line Decorator |
| Series | Hubbell-Pro |
| Current / Amperage Rating | 15 A |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Material - Mounting Hardware | Screw Mounting |
| Wire Size | #14 AWG to #10 AWG |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Horsepower - Maximum | 0.5 |
| Dimensions | 3.28 in x 1.57 in x 1.15 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating Description | 125 V |
| Type | Duplex Receptacle |
| Application | Hubbell-Pro Heavy Duty Hospital Grade |
| Package Quantity | 1 |
