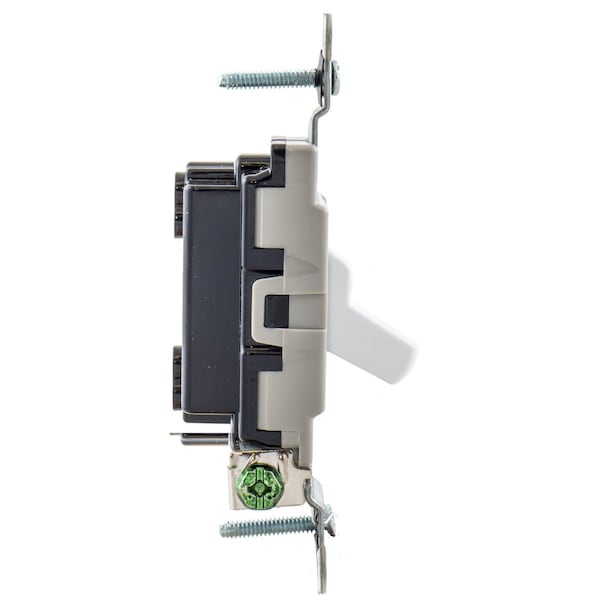

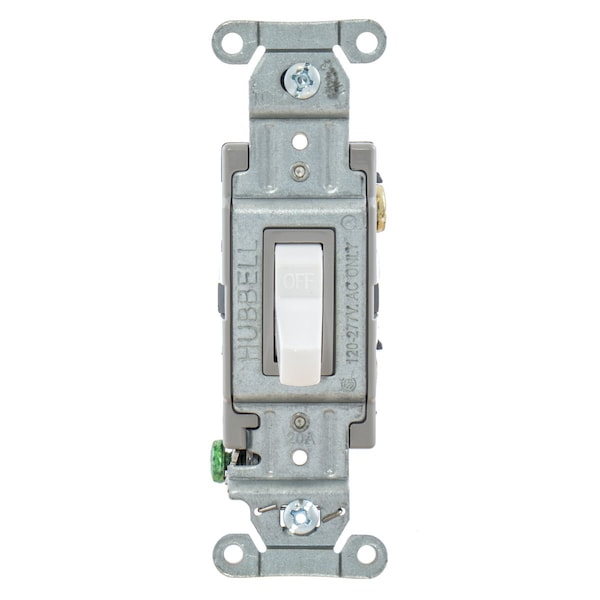

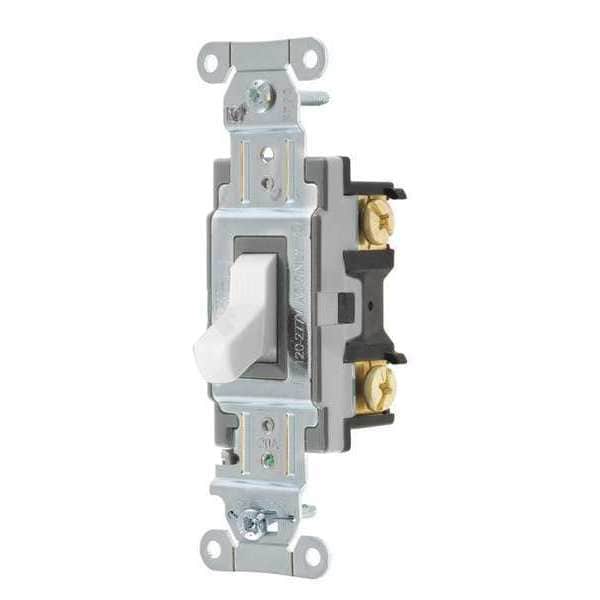

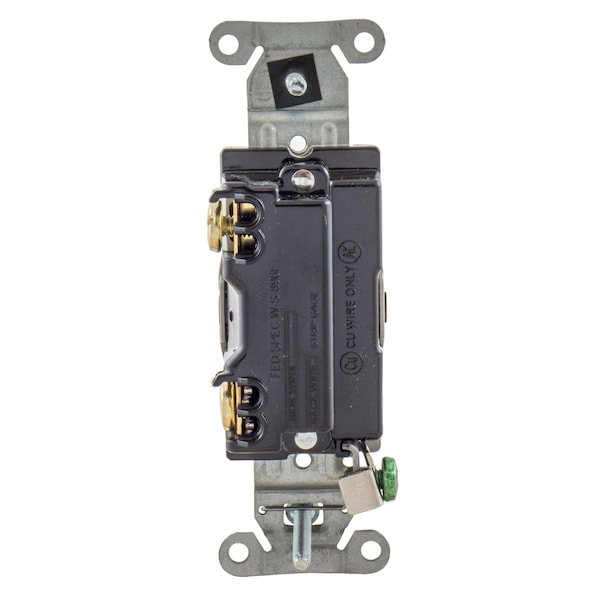

Toggle Wall Switch, 1 Pole, 1 hp, 20 A, 14 AWG to 10 AWG, 120/277V AC, Screw Terminals, White
| Item | Wall Switch |
|---|---|
| Switch Type | Single Pole |
| Switch Style | Toggle |
| Amps AC | 20 A |
| Color | White |
| Voltage AC | 120 to 277 |
| Locking | No |
| Switch Function | Maintained |
| Wiring Method | Back, Side |
| Application Environment | Commercial |
| Standards | UL Listed |
| Description/Special Features | Quiet Switch |
| Rated HP | 1 |
| Antimicrobial | No |
| Voltage | 120/277V AC |
| Maximum Operating Temperature | 75 deg C |
| Minimum Operating Temperature | -40 deg F |
| Wire Connection Type | Screw Terminals |
| Overall Width | 1-1/2 in |
| Maximum Wire Size | 10 AWG |
| Market | Commercial |
| Housing Material | Nylon |
| Resistance Properties | Shatter and Crack Resistant, Corrosion Resistant, Impact Resistant |
| Horsepower Rating | 1 HP |
| Current Rating | 20 A |
| Overall Height | 1.8 in |
| Locking Style | Not Applicable |
| Minimum Wire Size | 14 AWG |
| Number of Switches | 1 |
| Voltage Rating | 120/277V AC |
| Switch Material | Nylon |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Switch Grade | Specification Grade |
| Max. Continuous Current | 20 A |
| Flammability | UL 94V-2 |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Product Type | Toggle-switches |
| Amperage | 20 A |
| Max. Working Voltage | 277V AC |
| Temperature Rise | 30°C maximum at rated current |
| Switch Handle Positions | 2 |
| Operating Temperature | Max. continuous: 75°C; Min continuous: -40°C without impact |
| Listing and Certifications | Listed to Standard UL 20, CSA Certified, Meets NEMA WD1 |
| Toggle Color | White |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Wiring Style | Back and Side Wired |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Package Quantity | 1 |
