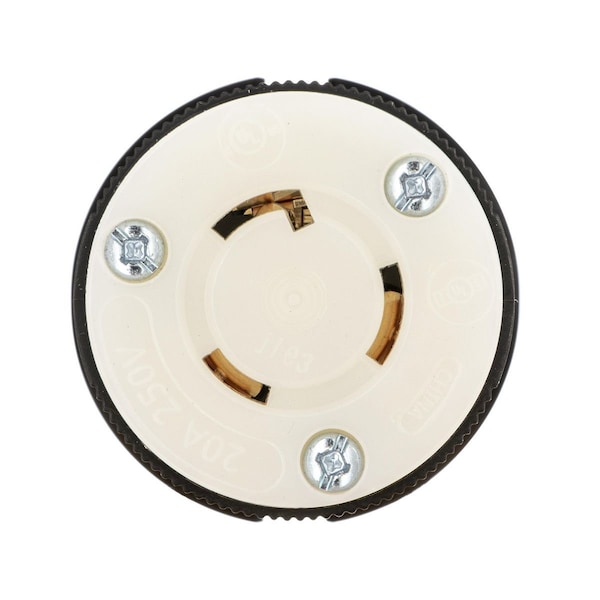

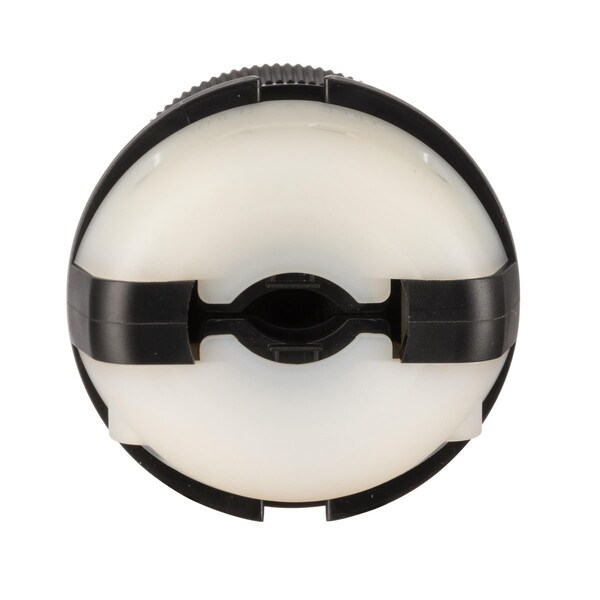

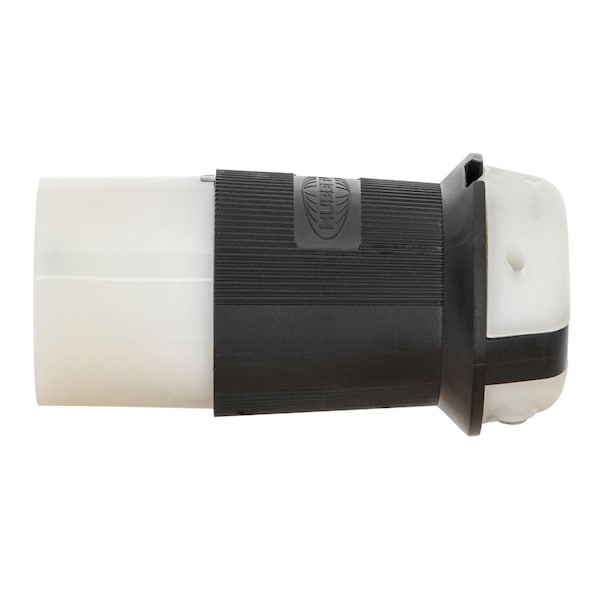

Twist-Lock®, EdgeConnect™, Female Connector Body, 20A 250V, L6-20R, Screwless Terminal
| Item | Locking Connector |
|---|---|
| Number of Poles | 2 |
| NEMA Configuration | L6-20 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Phase | Single |
| IP Rating | IP20 |
| Standards | CSA C22.2 No. 42, CSA Certified to Type 4, 4X and Type 12, Federal Specification W-C-596, UL 498, UL Listed |
| Midget Locking | No |
| Shrouded | No |
| Contact Material | Brass |
| For Location | Indoor |
| Grounding | Grounded |
| Housing Color | Black, White |
| NEMA Receptacle Configuration | L6-20R |
| Maximum Wire Size | 8 AWG |
| Resistance Properties | Impact Resistant |
| Cap Type | No Cap or Cover |
| Outside Diameter | 2.57 in |
| Housing Material | Nylon |
| Maximum Operating Temperature | 75 deg C |
| UL 94 Flammability Rating | V-0 |
| Wire Connection Type | Spring Clamp Terminals |
| Minimum Wire Size | 16 AWG |
| Market | Industrial |
| Minimum Operating Temperature | -40 deg C |
| Overall Length | 2.26 in |
| Connection Orientation | Straight |
| Current Rating | 20 A |
| Voltage Rating | 250V AC |
| Type | Connector |
| Current / Amperage Rating | 20 A |
| Series | EdgeConnectâ„¢ |
| Package Quantity | 1 |
