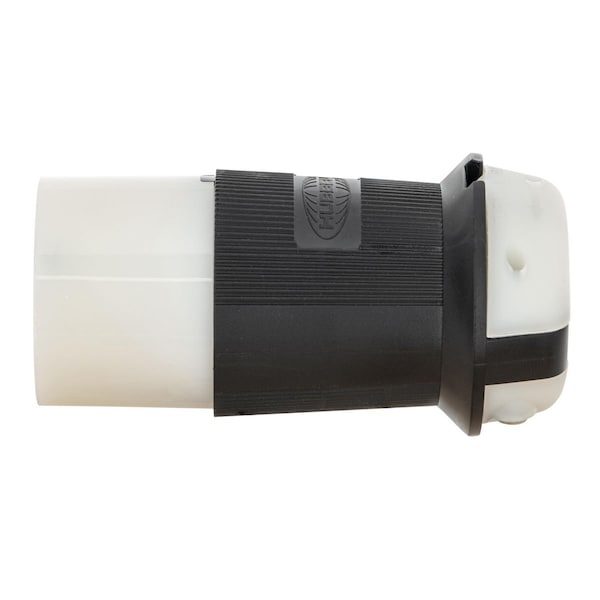

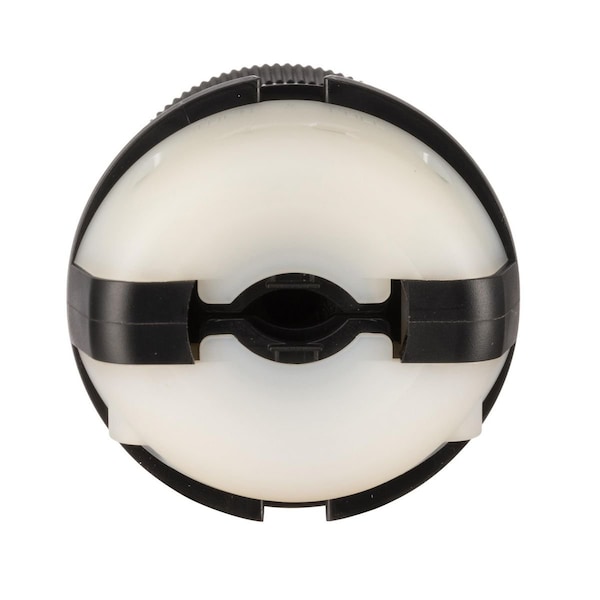

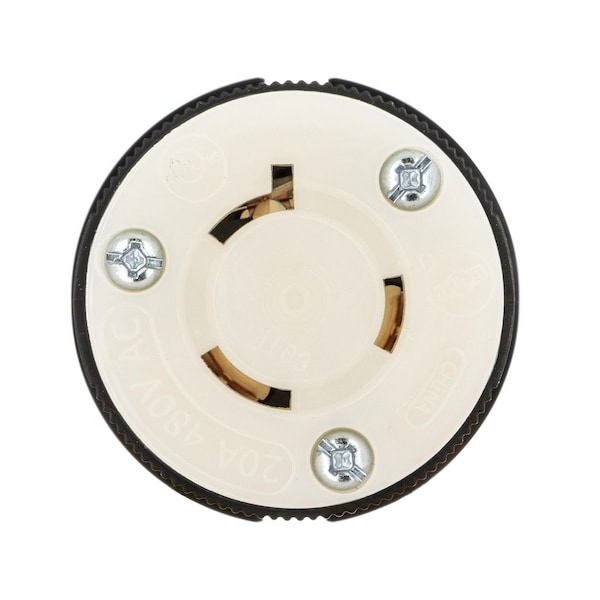

Twist-Lock®, EdgeConnect™, Female Connector Body, 20A 480V AC, L8-20R, Screwless Terminal
| Item | Locking Connector |
|---|---|
| NEMA Configuration | L8-20 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Standards | cULus Listed, Federal Specification |
| Grade | Federal Specification |
| Phase | Single |
| IP Rating | IP20 |
| For Maximum Cable Diameter | 0.93 in |
| Minimum Wire Size | 16 AWG |
| Contact Material | Copper |
| Outside Diameter | 2.26 in |
| Overall Length | 4.12 in |
| Cap Type | No Cap or Cover |
| Current Rating | 20 A |
| For Minimum Cable Diameter | 0.36 in |
| Resistance Properties | Impact Resistant |
| Grounding | Grounded |
| NEMA Receptacle Configuration | L8-20R |
| Wire Connection Type | Spring Clamp Terminals |
| Midget Locking | No |
| Housing Material | Nylon |
| Maximum Wire Size | 8 AWG |
| Voltage Rating | 480V AC |
| Connection Orientation | Straight |
| Shrouded | No |
| Market | Industrial |
| For Location | Indoor |
| Housing Color | Black, White |
| Type | Connector |
| Current / Amperage Rating | 20 A |
| Series | EdgeConnectâ„¢ |
| Package Quantity | 1 |
