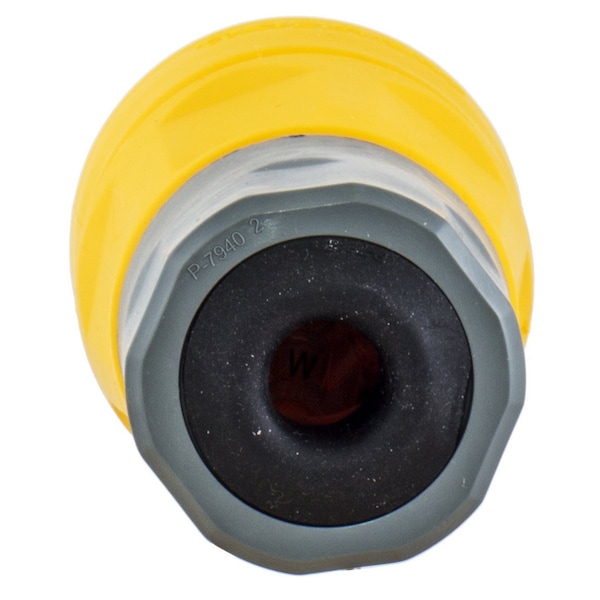

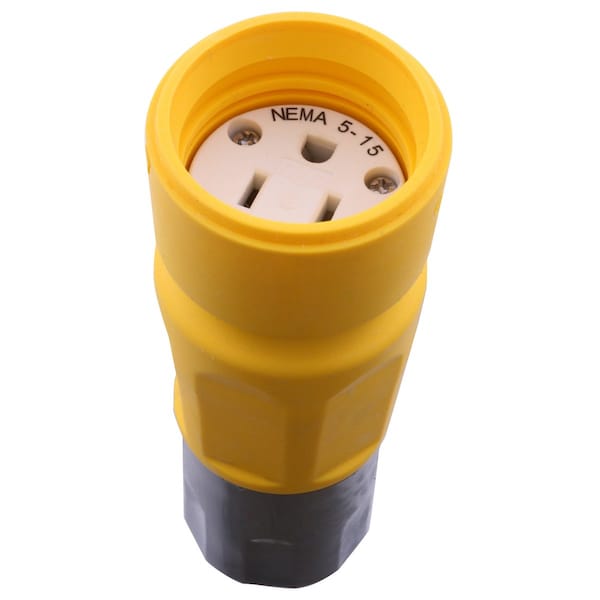

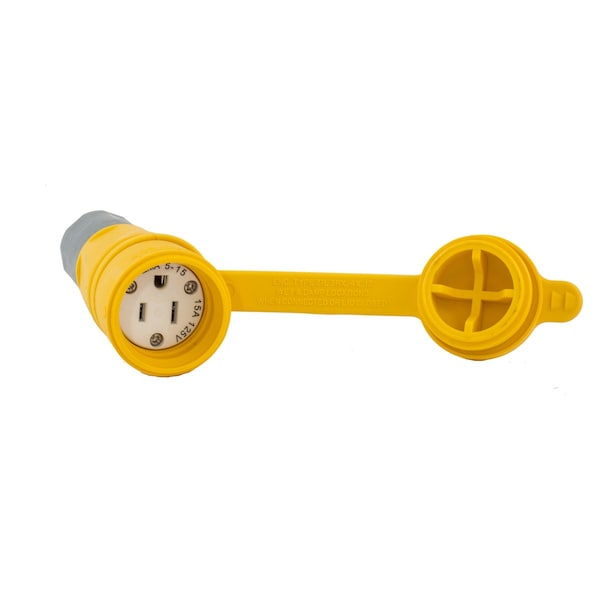

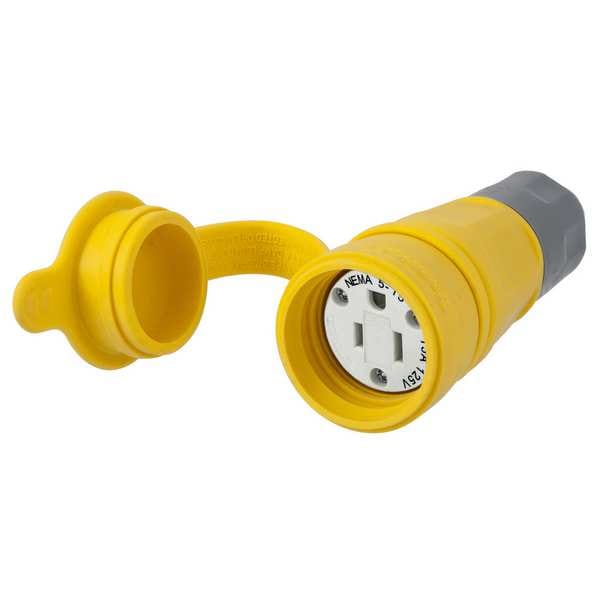

Conector recto resistente al agua, hembra, 5-15R, 15A125V, 2 polos 3 alambres
| Item - Plugs and Receptacles | Watertight Straight Blade Connector |
|---|---|
| Amps - Plugs and Receptacles | 15 |
| Voltage | 125VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15R |
| NEMA Receptacle Configuration | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Yellow |
| Grade - Plugs and Receptacles | Industrial |
| Antimicrobial | No |
| IP Rating | IP69K |
| Color | Yellow |
| Item | Watertight Straight Blade Connector |
| NEMA Configuration | 5-15 |
| Cord Size | 0.3 to 5/8 in |
| Standards | ANSI, CSA Certified, NEMA WD-1, NEMA WD-6, UL Listed |
| Material | Thermoplastic Elastomer, Valox |
| Power Indicator | No |
| Phase | Single |
| Corrosion Resistant | No |
| Amps | 15 |
| Grade | General Use |
| Horsepower Rating | 0.5 HP |
| Maximum Operating Temperature | 60 deg C |
| Resistance Properties | Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant |
| Polarized | Yes |
| Current Rating | 15 A |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Market | Industrial, Commercial |
| Connection Orientation | Straight |
| For Maximum Cable Diameter | 0.63 in |
| Shrouded | Yes |
| Insulation Material | Nylon |
| For Minimum Cable Diameter | 0.38 in |
| Housing Material | Thermoplastic Elastomer |
| Power Indicating Light | No |
| Cap Type | Press-On Cap |
| Contact Material | Nickel Plated Brass |
| Minimum Operating Temperature | -40 deg C |
| Housing Color | Yellow |
| Grounding | Grounded |
| UV Resistance | All Exposed Materials are UV Stabilized |
| Dielectric Strength | 2,500 V AC |
| NEMA Rating | 4, 4X, 12, 6, 6P |
| Bushing Material | Black Elastomer |
| Retainer Material | Clear Polycarbonate |
| Body Material | Thermoplastic Elastomer |
| Temp. Rise | 30°C |
| Operating Temp. | -40 to 60°C |
| Package Quantity | 1 |
