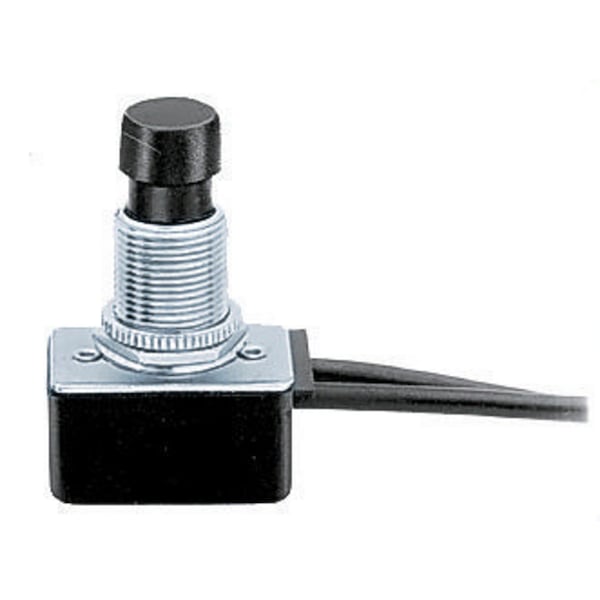

Interruptores de grado comercial, para montaje en panel y especializados, interruptores de botón pulsador, de un polo un tiro, 4A 250V/8A 125V, con cables de conexión.
| Series | Single Pole/Single Throw |
|---|---|
| Height | 0.64 in |
| Item | Panel Mount and Bat Handle Switch |
| Width | 0.98 in |
| Color | Metallic |
| Type | General Purpose |
| Performance | Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact |
| Carton Quantity | 10 |
| Action | SPST |
| Mounting Method | Panel Mount |
| Dimensions | 1-1/2 in x 0.98 in x 0.64 in |
| Maximum Horsepower | 0.33 |
| Number Of Poles | Single Pole |
| Wire Size | #18 AWG |
| Style | Wire Leads #18 AWG |
| Current Rating | 4/8/10 A |
| Voltage Rating | 250/125/120 VAC |
| Amperage | 4/8/10 A |
| Length | 1-1/2 in |
| Panel Switch Type | Push Button |
| Terminal | Copper Wire, #18 Std. AWG |
| Listing and Certifications | UL Recognized |
| Terminal Style | Leads |
| Operating Temperatures | Max Continuous- 75°C, Minimum -40°C Without Impact |
| Power Rating | 4A 250V AC, 8A 125V AC, 1/3 HP |
| Panel Switch Style | Single Pole, Single Throw |
| Product Type | Panel-switches |
| Horsepower - Maximum | 0.33 |
| Item Type | Bat Handle Switch, Panel Mount |
| Industry Standard(s) | UL Listed |
| Current / Amperage Rating | 4/8/10 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 4/8/10 A |
| Package Quantity | 1 |
