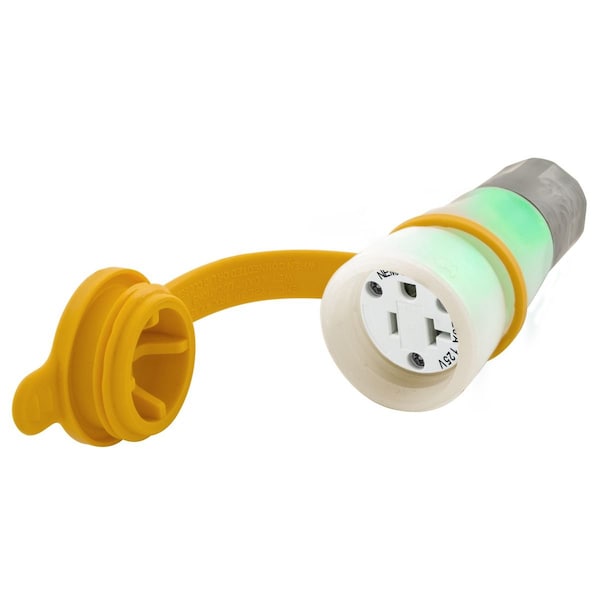

CONN, a prueba de agua, 5-20R, 20A, 125V, transparente, condición de cableado.
| Color | Clear |
|---|---|
| Type | Connector |
| Voltage Rating Description | 250 V |
| Current Rating | 20 A |
| Series | Watertight |
| Number Of Wires | 3 Wire |
| Current / Amperage Rating | 20 A |
| Number Of Poles | 2 Pole |
| Performance | Electrical: Current Interrupting- Rated for current interruption per UL498 Electrical: Dielectric Voltage- 2500V AC Electrical: Max Working Voltage- As marked Electrical: Temperature Rise- 30°C max per UL498 at rated current Mechanical: Cord Accomodation- 0.375"-0.625" (9.5-15.9) Environmental: Moisture Resistance- UL Listed 4, 4X, 12, 6, 6P Environmental: Operating Temperature- -40°C (without impact) to +60°C continuous Environmental: UV resistance- All exposed materials are UV stabilized |
| Industry Standard(s) | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Package Quantity | 1 |
