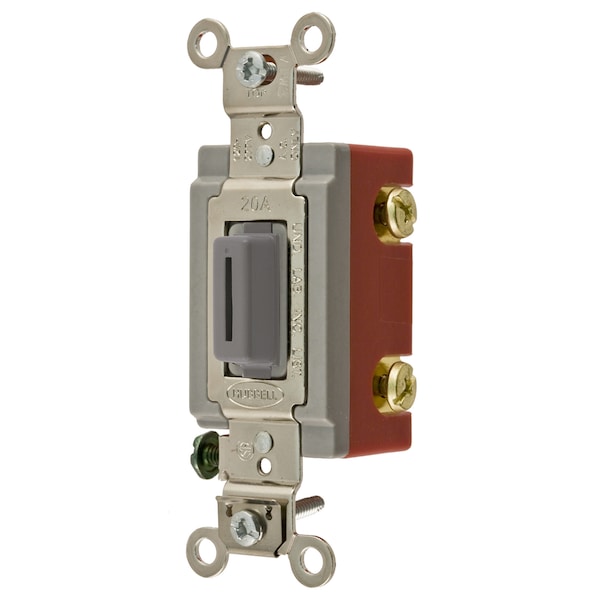

Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired Key Guide
| Color | Gray |
|---|---|
| Length | 4.06 in |
| Height | 1.13 in |
| Width | 1.31 in |
| Type | Locking |
| Style | Single Pole |
| Application | Back and Side Wired |
| Flammability | UL 94V-2 |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Dimensions | 4.06 in x 1.31 in x 1.13 in |
| Ground Screw | Brass (Green) |
| Key Guide | Metallic, Gray |
| Contacts | Silver Alloy |
| Carton Quantity | 10 |
| Max. Working Voltage | 277V AC |
| Series | Extra Heavy Duty |
| Voltage Rating Description | 120-277 VAC |
| Current / Amperage Rating | 20 A |
| Current Rating | 20 A |
| Wire Size | #14 AWG to #10 AWG |
| Base Material | Thermoset, Red |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Industry Standard(s) | UL Listed |
| Terminal Screws | Brass |
| Temp. Rise | 30°C maximum at rated current |
| Number Of Poles | Single Pole |
| Temperature Rise | 30°C maximum at rated current |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Operating Temperature | Max continuous: 75°C continuous: -40°C without impact, Min |
| Connectivity | Back and Side Wired |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Amperage Rating | 20 A |
| Voltage Rating | 120-277 VAC |
| Max. Continuous Current | 20 A |
| Top Material | Thermoset |
| Amperage | 20 A |
| Package Quantity | 1 |
