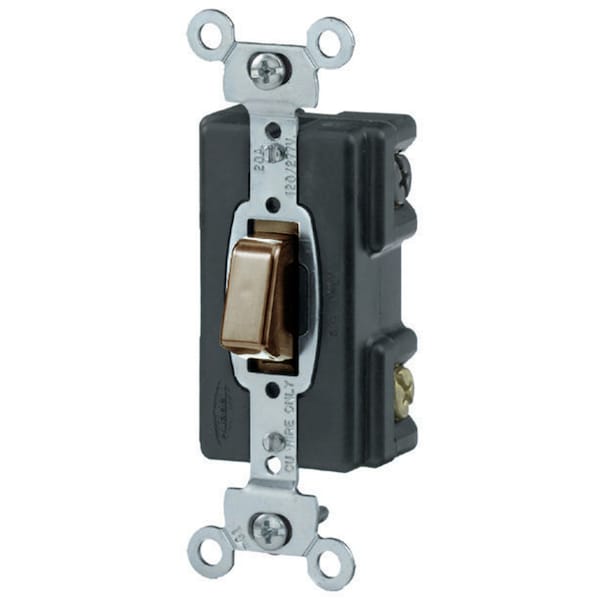

Industrial Grade, PresSwitch, General Purpose AC, Momentary Closed Single Pole, 20A 120/277V AC, Screw Terminals, Brown
| Item | Single Pole Toggle Switch |
|---|---|
| Switch Type | Momentary Normally Closed |
| Color | Brown |
| Height | 1.45 in |
| Length | 3.28 in |
| Voltage | 120/277V AC |
| Width | 1-1/2 in |
| Series | Momentary Contact |
| Style | Single Pole |
| Carton Quantity | 10 |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Current / Amperage Rating | 20 A |
| Dimensions | 3.28 in x 1-1/2 in x 1.45 in |
| Wire Size | #14 AWG to #10 AWG |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Max. Working Voltage | 277V AC |
| Number Of Poles | Single Pole |
| Product Type | Toggle-switches |
| Connectivity | Side Wired Only |
| Amperage Rating | 20 A |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Temperature Rise | 30°C maximum at rated current |
| Voltage Rating Description | 120-277 VAC |
| Amperage | 20 A |
| Max. Continuous Current | 20 A |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Flammability | UL 94V-2 |
| Voltage Rating | 120-277 VAC |
| Operating Temperature | Max continuous: 75°C continuous: -40°C without impact, Min |
| Industry Standard(s) | Fed. Spec. W-S-896 |
| Item Type | Single Pole Toggle Switch |
| Switch Handle Positions | 2 |
| Current Rating | 20 A |
| Wiring Style | Side Wired Only |
| Toggle Color | Brown |
| Switch Grade | PresSwitches |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Temp. Rise | 30°C maximum at rated current |
| Package Quantity | 1 |
