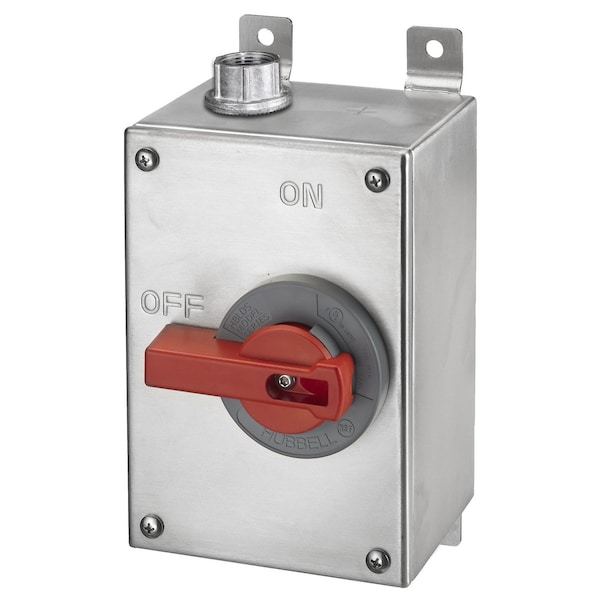

Grado industrial, variador de frecuencia, interruptores de desconexión, interruptor sin fusibles, tres polos, 60A 600V CA, terminales de tornillo, recinto NEMA 4X.
| Width | 7.3 in |
|---|---|
| Height | 5.39 in |
| Application | Labelless |
| Length | 11.63 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current / Amperage Rating | 60 A |
| Current Rating | 60 A |
| Amperage Rating | 60 A |
| Dielectric Strength | Withstands 3000V AC minimum |
| Style | Heavy Duty |
| Mounting Method | Feet are fixed |
| Enclosure Type | Type 4X, IP69k |
| Series | Non-Fused |
| Industry Standard(s) | UL Listed |
| Type | Disconnect Switches |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage Electrical - Dielectric Voltage - Withstands 3000V AC minimum Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V0 Classification Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact Environmental - UV Resistance - All materials are UV stabilized Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - Stainless Steel - Feet are fixed Mechanical - Product Identification - Identification and ratings are part of external label Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Dimensions | 11.63 in x 7.3 in x 5.39 in |
| Package Quantity | 1 |
