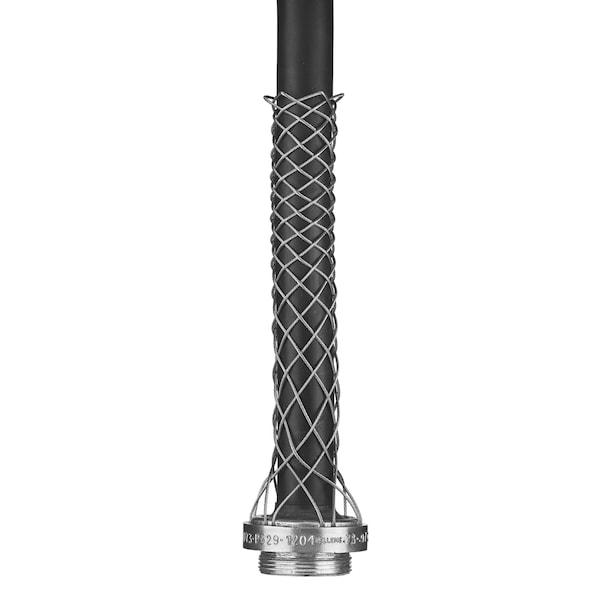

Kellems Wire Management, Dusttight Grips, Strain Relief, .24-.32", PG29 Non-Insulated
| Material | Aluminum Fittings, Galvanized Steel Mesh |
|---|---|
| Application | Light Duty |
| Fitting Flammability Rating | UL 94-V3 |
| Mesh Grip Flammability Rating | UL 94-HB |
| Hazardous Locations | Suitable for use in hazardous locations per Class I, Div. 2, Class II, Div. 1 & 2, Class III, Div. 1 & 2. |
| Grip Style and Material | Stainless Grip |
| Grip Cord Range (Diameter) | .73"- .97" (1.85- 2.46) |
| Product Type | Grips |
| Thread Type | P.G. |
| Grip Thread Size | PG29 |
| Mesh Length @ Nom. Dia. | 7" (17.78) |
| Certifications | UL Listed CSA Certified |
| Recommended Knockout Hole Size | 29 mm Threaded Hub |
| Operating Temperature | -30°F to +225°F |
| Style | For Insulated Cables |
| Material - Mounting Hardware | Locknut or Tapped Hole |
| Industry Standard(s) | UL Listed |
| Performance | Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2 (Fitting) Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C |
| Cable Size | .73"-.97" (1.85-2.46) |
| Construction | Woven |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Thread Size | PG29 |
| Cable Specification | Mesh Length @ Nom. Dia. : 7" (17.78 cm) |
| Type | Wide Range, Non-Insulated |
| Display Size | Standard Sized |
| Item Type | Dust-Tight Strain Relief Grips |
| Cable Diameter Range | 0.73 to 0.97 in |
| Series | Dust-Tight |
| Package Quantity | 1 |
