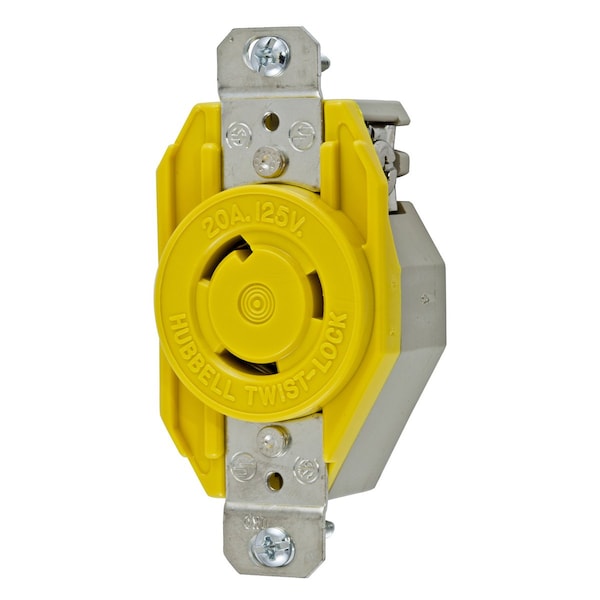

Locking Devices, Twist-Lock®, Corrosion Resistant Single Flush Receptacle, 20A, 125V AC, 2 Pole, 3 Wire Grounding, Yellow
| Item | Single Receptacle |
|---|---|
| NEMA Configuration | L5-20R |
| Voltage | 125V AC |
| Amps | 20 |
| Color | Yellow |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Wiring Style | Standard |
| HP | 1 |
| Special Features | Molded In or Stamped On |
| Material | Steel-zinc-plated |
| IP Rating | IP20 Suitability |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Application | Wiring Devices |
| Spring Material | .040" Brass |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Lock Type | Twist-lock |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Weight (Lbs.) | 0.5 |
| Base Material | Nylon Polyester |
| Wire Size | #12AWG |
| Height | 1.23 in |
| Length | 3.28 in |
| Width | 1.73 in |
| Nema Rating | L5-20R |
| Amperage Rating | 30 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dimensions | 3.28 in x 1.73 in x 1.23 in |
| Current / Amperage Rating | 30 A |
| Connectivity | Back and Side Wired |
| Material - Mounting Hardware | Screw Mounting |
| Current Rating | 30 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Dielectric Strength | Withstands 2,000V minimum |
| Number Of Wires | 3-Wire Grounding |
| Voltage Rating | 125 VAC |
| Display Size | Standard Sized Product |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Item Type | 20A Single Flush Receptacle |
| Horsepower - Maximum | 1 |
| Package Quantity | 1 |
