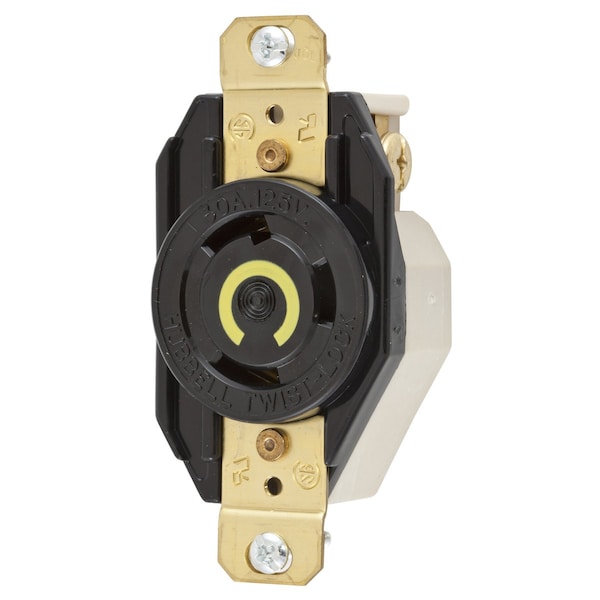

Dispositivos de bloqueo, Twist-Lock®, Industrial, Receptáculo empotrado, 30A 125V, 2 polos 3 cables de conexión a tierra, L5-30R, Terminal de anillo, Negro.
| Item | Single Receptacle |
|---|---|
| NEMA Configuration | L5-30R |
| Voltage | 125V AC |
| Amps | 30 |
| Color | Black |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Height | 1.31 in |
| Wiring Style | Standard, Ring Terminal Wiring |
| Width | 1.7 in |
| Application | Heavy Duty Industrial |
| Length | 3.28 in |
| Material | zinc plated Steel |
| IP Rating | IP20 Suitability |
| HP | 2 |
| Special Features | Molded In or Stamped On |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Weight (Lbs.) | 0.35 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire only. |
| Lock Type | Twist-lock |
| Spring Material | .031" Brass |
| Base Material | Nylon Polyester |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 30 A |
| Connectivity | Ring Terminal |
| Voltage Rating Description | 125 VAC |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Horsepower - Maximum | 2 |
| Nema Rating | L5-30R |
| Type | Single Flush Receptacle |
| Current Rating | 30 A |
| Item Type | Single Flush Receptacles |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dimensions | 3.28 in x 1.7 in x 1.31 in |
| Current / Amperage Rating | 30 A |
| Number Of Wires | 3-Wire |
| Dielectric Strength | Withstands 2,000V minimum |
| Material - Mounting Hardware | Screw Mounting |
| Display Size | Standard Sized Product |
| Package Quantity | 1 |
