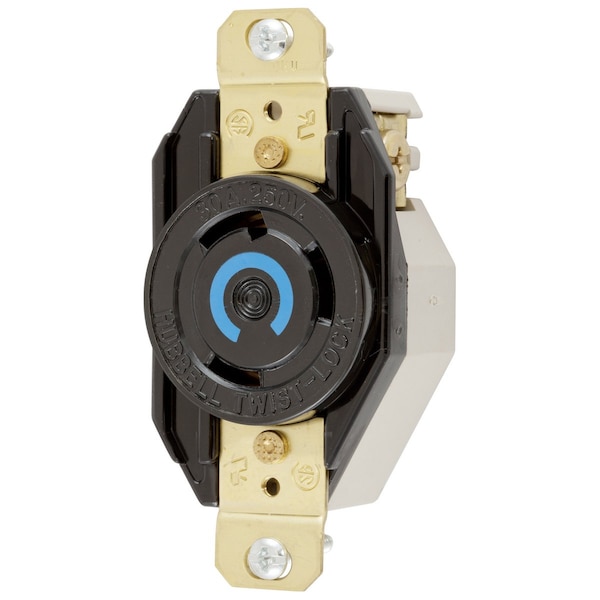

Locking Devices, Twist-Lock®, Single Flush Receptacle, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, Nylon face, Ring terminal connection
| Item | Single Receptacle |
|---|---|
| NEMA Configuration | L6-30R |
| Voltage | 250V AC |
| Amps | 30 |
| Color | Black |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Height | 1.31 in |
| Wiring Style | Standard, Ring Terminal Wiring |
| Width | 1.7 in |
| Application | Heavy Duty Industrial |
| Length | 3.28 in |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| HP | 2 |
| Special Features | Molded In or Stamped On |
| Material | zinc plated Steel |
| Spring Material | .040" Brass |
| Weight (Lbs.) | 0.3 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | #10 AWG |
| Lock Type | Twist-lock |
| Flammability | VO or better |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Base Material | Nylon Polyester |
| Nema Rating | L6-30R |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in x 1.7 in x 1.31 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Connectivity | Ring Terminal |
| Item Type | 30A Single Flush Receptacle |
| Current Rating | 30 A |
| Display Size | Standard Sized Product |
| Current / Amperage Rating | 30 A |
| Amperage Rating | 30 A |
| Material - Mounting Hardware | Screw Mounting |
| Voltage Rating | 250 VAC |
| Horsepower - Maximum | 2 |
| Number Of Wires | 3-Wire Grounding |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Package Quantity | 1 |
