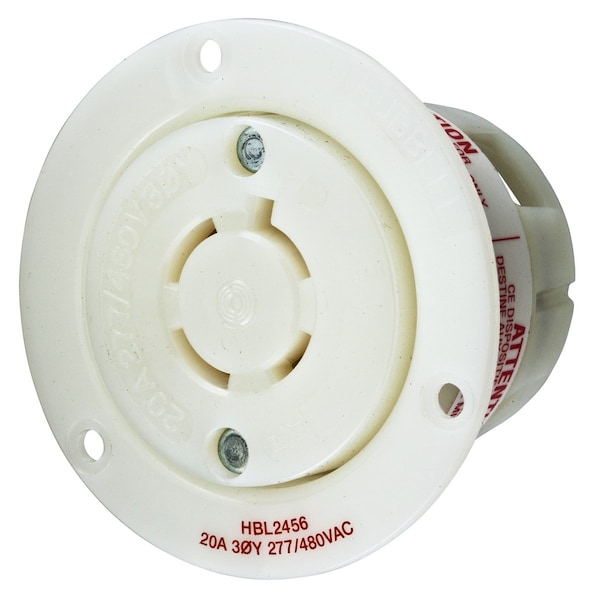

Conector bloqueable, L19-20R, 20 A, 277/480V CA, Trifásico, 4 Polos, Terminales de Tornillo. Este conector proporciona una solución segura y confiable para la transferencia de energía en aplicaciones industriales.
| Item | Locking Receptacle |
|---|---|
| NEMA Receptacle Configuration | L19-20R |
| Current Rating | 20 A |
| Voltage Rating | 277/480V AC |
| Phase | Three |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| Housing Color | White |
| Cover Type | No Cover |
| IP Rating | IP20 |
| Standards | Certified to CSA C22.2 No.42, Fed.Spec. W-C-596, Listed to UL 498 |
| Material | Nickel-plated Brass Round head screws |
| Flange Material | Natural White Nylon |
| Wiring Style | Standard |
| Special Features | Molded In or Stamped On |
| Application | Insulgrip |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Lock Type | Twist-lock |
| Flammability | HB or better per UL 94 or CSA 22.2 No. 0.6 |
| Spring Material | Brass |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire only. |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Horsepower - Maximum | 5 |
| Height | 2.27 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Display Size | Standard Sized Product |
| Dimensions | 3.06 in x 3.06 in x 2.27 in |
| Material - Mounting Hardware | Screw Mounting |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Length | 3.06 in |
| Width | 3.06 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Amperage Rating | 20 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Environmental - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. |
| Package Quantity | 1 |
